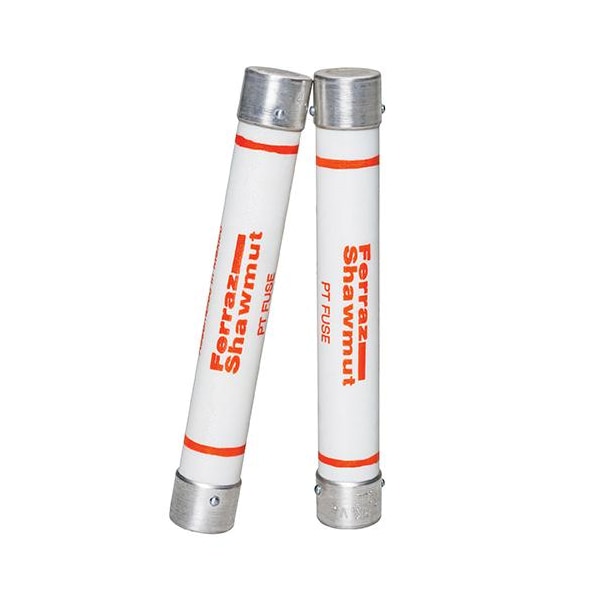

Medium-Voltage Fuse, A480T Series, 0.75A, Time-Delay, 4800V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | A480T |
| Amps | 0.75A |
| Speed | Time-Delay |
| AC Voltage Rating | 4800V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA |
| Body Material | GMG |
| Diameter | 0.81 in |
| Length | 5.63 in |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Voltage Rating | 4,800 V |
| Fuse Amps | 0.75 A |
| Operating Temp. Range | 80 °C |
| Connection Type | Ferrule |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| Storage Temp. Range | -25 to 80 °C |
| APPLICATIONS | Primary protection for potential transformers (PT) or control power transformers (CPT) |
| Rated voltage AC UL | 4,800 V |
| Connection/Terminal Type | Ferrule |
| Ampere Rating | 0.75 A |
| Body/Insulating Material | GMG |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
