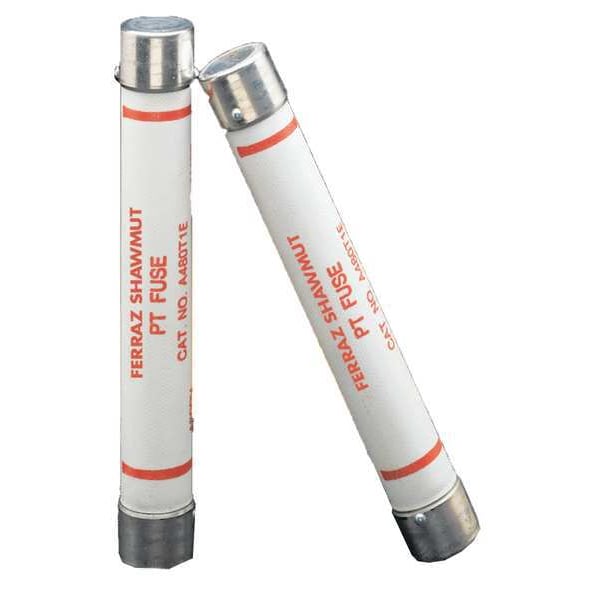

Medium Voltage Fuse, A480T Series, 1/2A, Time-Delay, 4800V AC, Cylindrical
| Item | Medium Voltage Fuse |
|---|---|
| Series | A480T |
| Amps | 1/2A |
| Speed | Time-Delay |
| AC Voltage Rating | 4800V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA (Sym.) at 4800V AC |
| Body Material | GMG |
| Diameter | 13/16 in |
| Length | 5-5/8 in |
| Equivalent Brand and Series | Bussmann AMWNA, Mersen A480T |
| Equivalent Series | A480T, AMWNA |
| Fits Fuse Block Style | Non-Rejection |
| Mounting | Clip |
| Class | E-Rated |
| Element | Single |
| Connection Type | Ferrule |
| APPLICATIONS | Primary protection for potential transformers (PT) or control power transformers (CPT) |
| Body/Insulating Material | GMG |
| Products By Industry | Electrical |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Type | Ferrule |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
