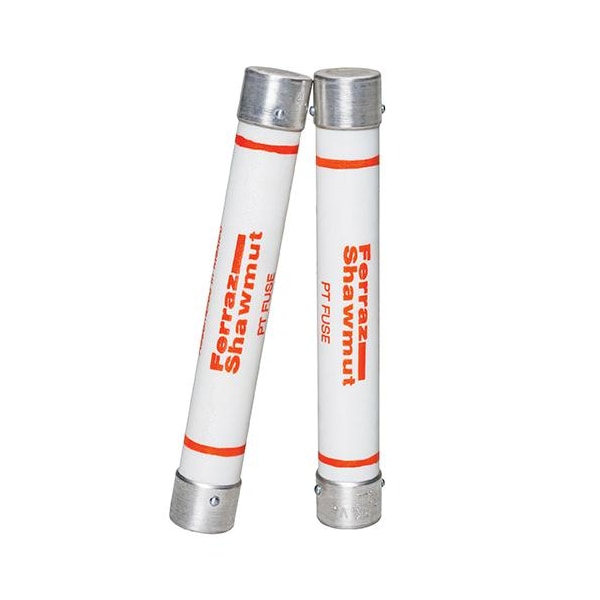

Medium-Voltage Fuse, A720 Series, 2A, 7200V AC, Ferrule
| Item | Medium-Voltage Fuse |
|---|---|
| Series | A720 |
| Amps | 2A |
| AC Voltage Rating | 7200V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Ferrule |
| Interrupt Rating | 50kA |
| Body Material | GMG |
| Diameter | 0.81 in |
| Length | 9-1/2 in |
| Fuse Voltage Rating | 7,200 V |
| Fuse Amps | 2 A |
| Operating Temp. Range | 80 °C |
| Connection Type | Ferrule |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| Storage Temp. Range | -25 to 80 °C |
| Rated voltage AC UL | 7,200 V |
| Connection/Terminal Material | Tin-Plated Copper |
| Ampere Rating | 2 A |
| Connection/Terminal Type | Ferrule |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| APPLICATIONS | Primary protection for potential transformers (PT) or control power transformers (CPT) |
| Body/Insulating Material | GMG |
| Package Quantity | 1 |
