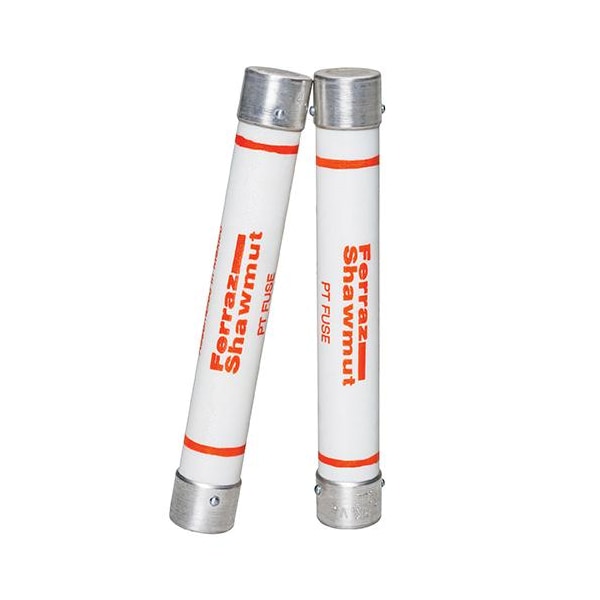

Medium-Voltage Fuse, BHH Series, 2A, 15500V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | BHH |
| Amps | 2A |
| AC Voltage Rating | 15500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 50kA |
| Body Material | Epoxy |
| Diameter | 1.56 in |
| Length | 12.88 in |
| Fuse Voltage Rating | 15,500 V |
| Fuse Amps | 2 A |
| Connection Material | Copper |
| Operating Temp. Range | 80 °C |
| Connection Type | Ferrule |
| Mounting | Clip |
| Storage Temp. Range | -25 to 80 °C |
| Connection/Terminal Type | Ferrule |
| Rated voltage AC UL | 15,500 V |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| APPLICATIONS | Primary protection for potential transformers (PT) or control power transformers (CPT) |
| Connection/Terminal Material | Copper |
| Body/Insulating Material | Epoxy |
| Ampere Rating | 2 A |
| Package Quantity | 1 |
