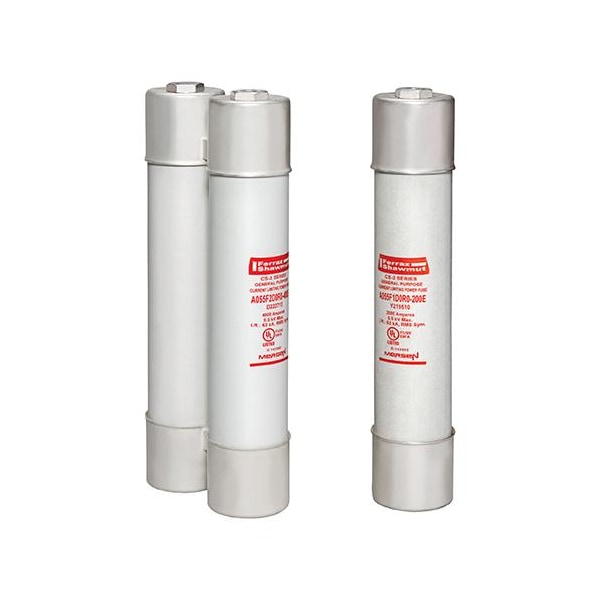

Medium-Voltage Fuse, DMH Series, 3A, E-Rated, 15500V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | DMH |
| Amps | 3A |
| Speed | E-Rated |
| AC Voltage Rating | 15500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 50kA |
| Body Material | Epoxy |
| Diameter | 2 in |
| Length | 17.2 in |
| Fuse Amps | 3 A |
| Class | E |
| Fuse Speed | E-Rated |
| Fuse Voltage Rating | 15,500 V |
| Connection Material | Silver-Plated Copper |
| Storage Temp. Range | -25 to 80 °C |
| Operating Temp. Range | 80 °C |
| Connection Type | Ferrule |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Ampere Rating | 3 A |
| Connection/Terminal Material | Silver-Plated Copper |
| Frequency | 50/60 Hz |
| Body/Insulating Material | Epoxy |
| APPLICATIONS | Protection for 12 kV to 15.5 kV transformers or distribution systems. |
| APPROVALS & STANDARDS | Some UL listed to standard File E143362 |
| Connection/Terminal Type | Ferrule |
| Rated voltage AC UL | 15,500 V |
| Package Quantity | 1 |
