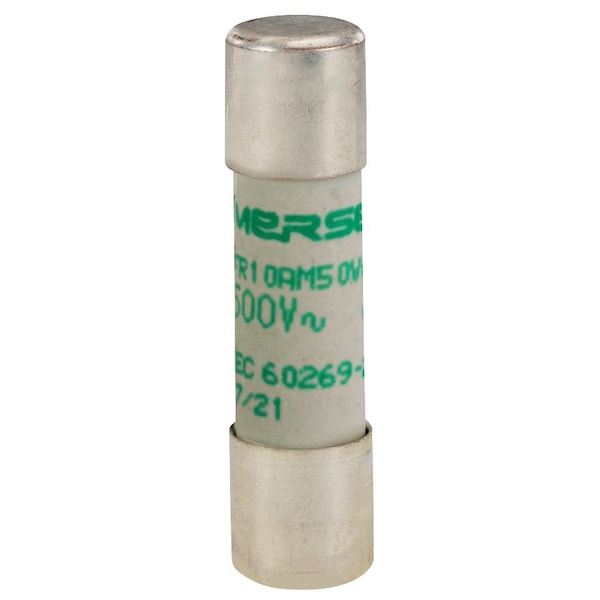

Midget Fuse, 2A, 500V AC, Indicating, 120kA
| Amps | 2A |
|---|---|
| AC Voltage Rating | 500V AC |
| Visual Indication | Indicating |
| Interrupt Rating | 120kA |
| Body Style | Cylindrical |
| Diameter | 0.41 in |
| Length | 1-1/2 in |
| Body Material | Ceramic |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Speed Characteristic | aM |
| Ac Max I R Breaking Capacity I1 | 120 kA |
| Connection Terminal Type | Ferrule |
| Connection Terminal Material | Silver-Plated Copper |
| Power Dissipation At Rated Current Value | 0.14 W |
| Mounting | Clip |
| Rated Voltage Ac Iec | 500 V |
| Package Quantity | 1 |
