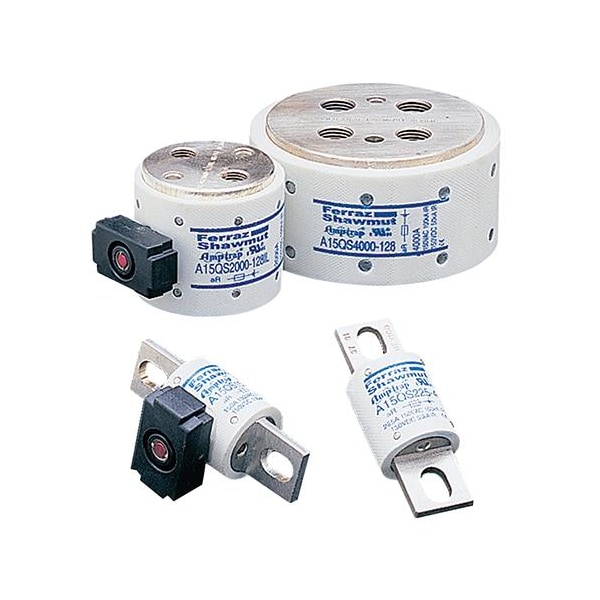

Midget Fuse, A15QS Series, Very Fast Acting, 10A, 150V AC, 200kA
| Series | A15QS |
|---|---|
| Speed | Very Fast Acting |
| Amps | 10A |
| AC Voltage Rating | 150V AC |
| Interrupt Rating | 200kA |
| Body Style | Cylindrical |
| Diameter | 0.41 in |
| Length | 1-1/2 in |
| Body Material | GMG |
| DC Voltage Rating | 150V DC |
| Item | Midget Fuse |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: UL guide no. JFHR2 (1-4000A); DC tested to UL standard 198L parameters (1-4000A) |
| Package Quantity | 1 |
