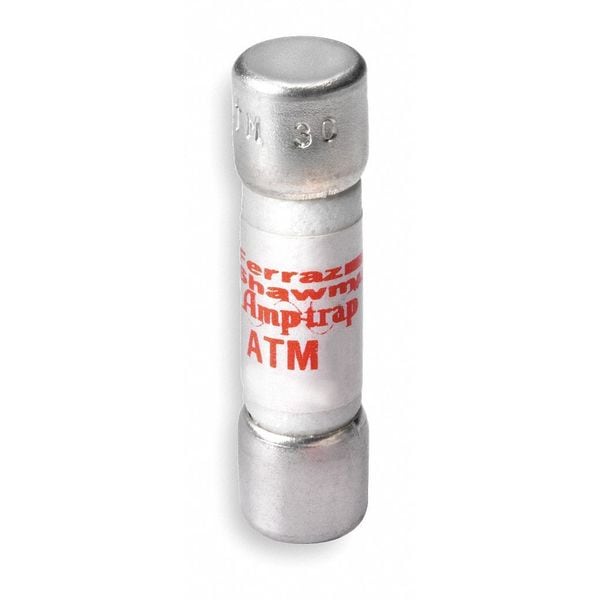

Midget Fuse, ATM Series, Fast-Acting, 15A, 600V AC, Non-Indicating, 100kA at 600V AC/DC
| Series | ATM |
|---|---|
| Speed | Fast-Acting |
| Amps | 15A |
| AC Voltage Rating | 600V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 600V AC/DC |
| Body Style | Cylindrical |
| Diameter | 0.41 in |
| Length | 1-1/2 in |
| Body Material | Melamine |
| Equivalent Brand and Series | Bussmann KTK, Littelfuse KLK, Mersen ATM |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | FEB, FEBN, Fex, GPM, MFB, USFM10, USM, ATM, HHH, HHL, HHM, Mini Dual Fuse, Tap |
| DC Voltage Rating | 600V DC |
| Item | Midget Fuse |
| Rejection / Nonrejection | Nonrejection |
| Mounting | Clip |
| Standards | CSA, UL |
| Weight | 0.012 lb |
| Element | Single |
| Equivalent Series | ATM, KLK, KTK |
| Fuse Holder Code | D |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| APPLICATIONS | Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R. |
| In Line Fuseholder | D |
| APPROVALS & STANDARDS | UL listed to standard 248-14 (1/10 to 30A) File E33925; DC Listed to UL Standard 248-14 (1/10 to 30A); CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A) |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection Material | Tin-Plated Copper |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 1 |
