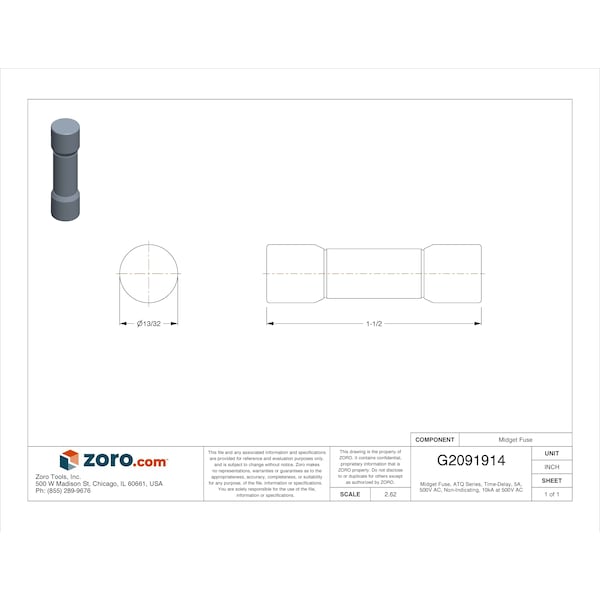

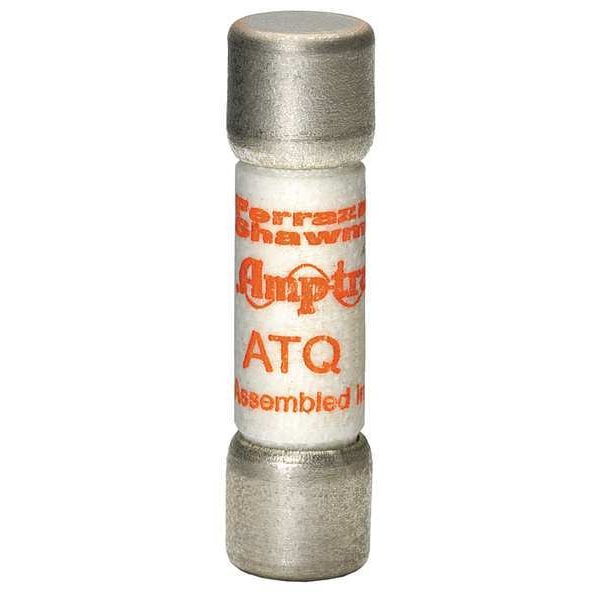

Midget Fuse, ATQ Series, Time-Delay, 5A, 500V AC, Non-Indicating, 10kA at 500V AC
| CAD Available | Yes |
|---|---|
| Series | ATQ |
| Speed | Time Delay |
| Amps | 5A |
| AC Voltage Rating | 500V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 500V AC |
| Body Style | Cylindrical |
| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Body Material | Melamine |
| Equivalent Brand and Series | Bussmann FNQ, Littelfuse FLQ, Mersen ATQ, Power First HC10S |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | FEB, FEBN, Fex, GPM, MFB, USFM10, USM |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Fuse Holder Code | D |
| Standards | CSA, UL |
| Class | Midget |
| Functionally Equal To | Bussmann FNQ, Littelfuse FLQ |
| Element | Dual |
| In Line Fuseholder | D |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Equivalent Series | ATQ, FLQ, FNQ, HC10S |
| Weight | 0.012 lb |
| Connection Type | Ferrule |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| APPROVALS & STANDARDS | UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14 |
| Package Quantity | 1 |
