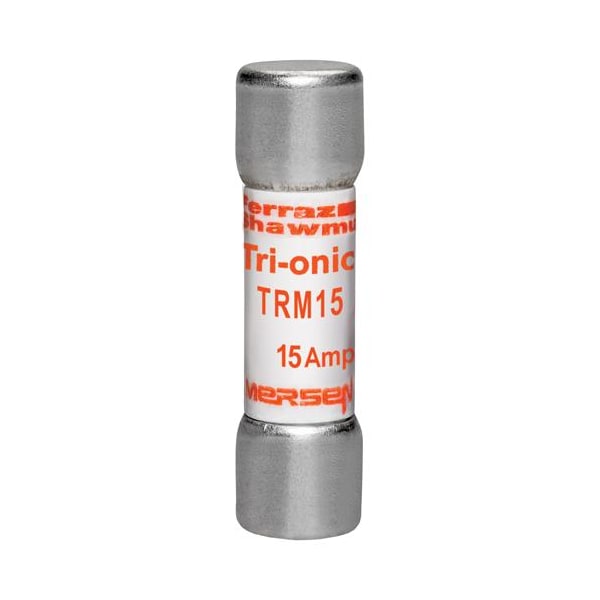

Midget Fuse, TRM Series, Time-Delay, 15A, 250V AC, 10kA
| Series | TRM |
|---|---|
| Speed | Time Delay |
| Amps | 15A |
| AC Voltage Rating | 250V AC |
| Interrupt Rating | 10kA |
| Body Style | Cylindrical |
| Diameter | 0.41 in |
| Length | 1-1/2 in |
| Body Material | GMG |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Weight | 0.012 lb |
| Class | Midget |
| Connection Type | Ferrule |
| Mounting | Clip |
| APPROVALS & STANDARDS | UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14 |
| Connection/Terminal Material | Tin-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| APPLICATIONS | Small motors; Small transformers; Lighting circuits; Control circuits |
| Package Quantity | 1 |
