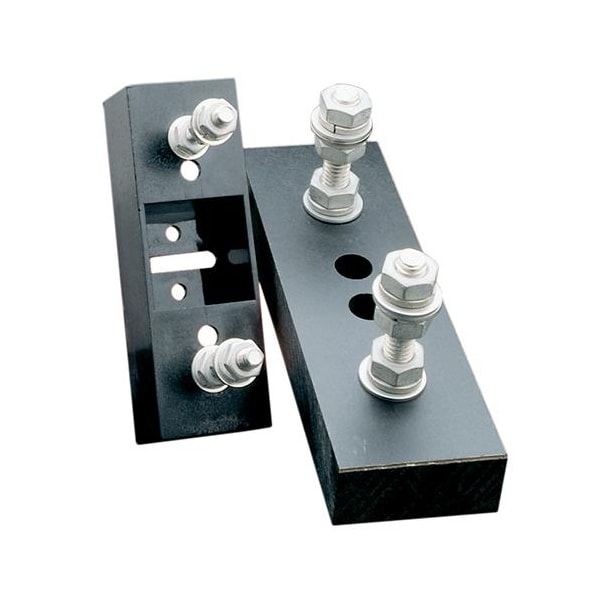

Open Fuse Block, 1 Poles, 1000V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | P |
| Number of Poles | 1 |
| Voltage Rating | 1000V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Body Material | Phenolic |
| Width | 2.79 in |
| Length | 4.4 in |
| Height | 2.79 in |
| Fuse Type | P-Block |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 10 kA |
| Max. Operating Temp. | 80 deg C |
| Connection/Terminal Material | Silver-Plated Copper |
| Torque Rating | 36 in-lb |
| APPROVALS & STANDARDS | UL Recognized Component guide IZLT2 File E52283; CSA Certified C22.2, class 6225, File 32169 |
| Connection/Terminal Type | Stud |
| Fuse Installation Method | Bolt-in |
| Package Quantity | 1 |
