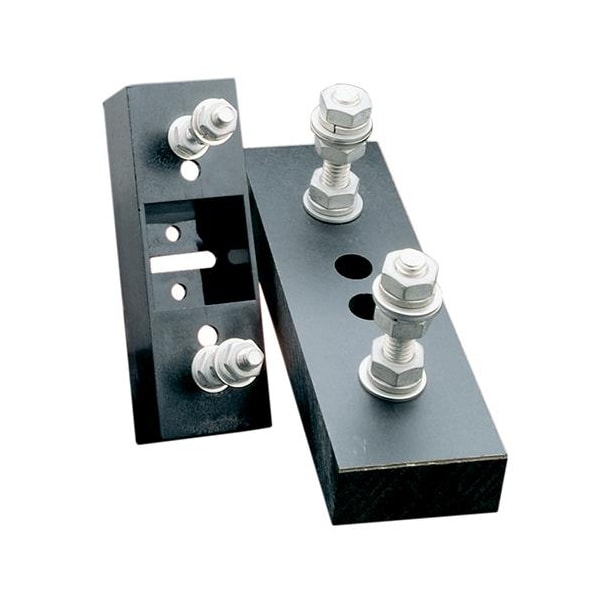

Open Fuse Block, 1 Poles, 1200V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | P |
| Number of Poles | 1 |
| Voltage Rating | 1200V AC/DC |
| Connector Type | Screw, Clip |
| Mounting Style | Screw |
| Body Material | Phenolic |
| Width | 2.01 in |
| Length | 6.38 in |
| Height | 2.01 in |
| Fuse Type | P-Block |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 10 kA |
| Connection/Terminal Type | Clip |
| Fuse Installation Method | Bolt-in |
| APPROVALS & STANDARDS | UL Recognized Component guide IZLT2 File E52283; CSA Certified C22.2, class 6225, File 32169 |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
