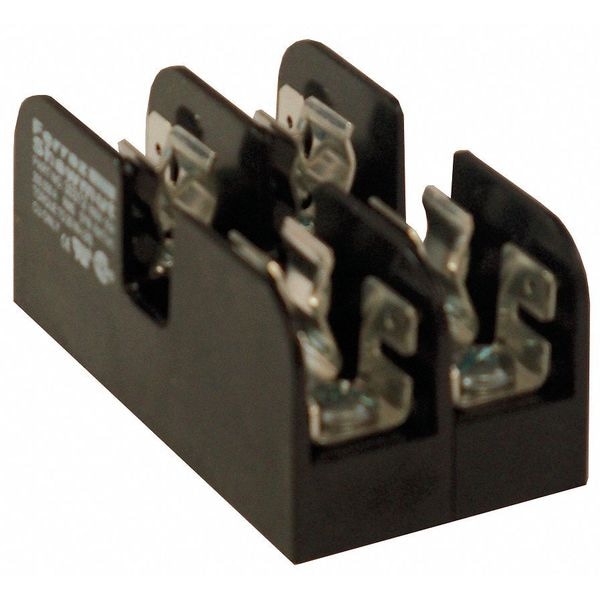

Open Fuse Block, 2 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating

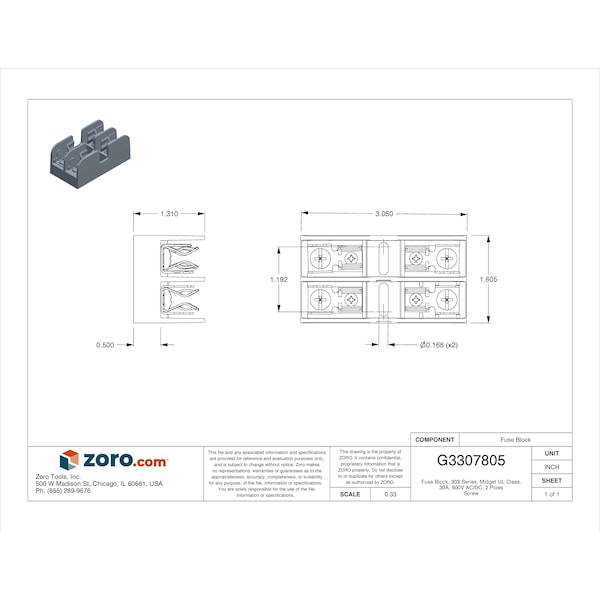

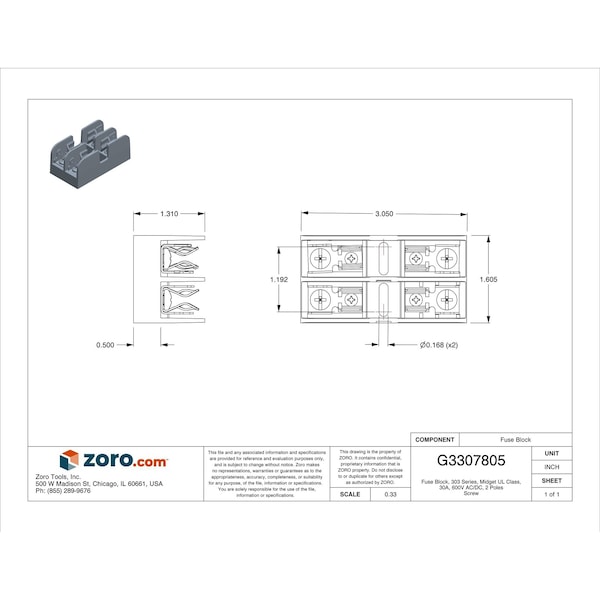

| CAD Available | Yes |
|---|---|
| Item | Open Fuse Block |
| Series | 303 |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | GFPC |
| Length | 3.04 in |
| Width | 1.6 in |
| Standards | CSA Certified, UL Listed |
| Height | 1.31 in |
| For Fuse Series | ATM, ATQ, DCT, OTM, TRM |
| Fuse Type | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Wire Range | 14 AWG to 10 AWG |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Mounting Hole Dia. | 0.164 in |
| Fits Fuse Block Style | Non-Rejection |
| Rated Torque (In.-Lb.) | 20 in-lb |
| Installation Mounting | Screw Mount or DIN Rail |
| Max Fuse Rating | 30 A |
| APPROVALS & STANDARDS | UL listed, guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Short Description | Fuse Bases 600V 30A pole Tin-Plate Copper Screw with Reinforced Clip, Bases 600V 30A Midget pole Tin-Plate Copper Screw with Reinforced Clip, Fuse Bases 600V 30A Midget Tin-Plate Copper Screw with Reinforced Clip, Fuse Bases 600V 30A Midget pole Screw with Reinforced Clip, Fuse Bases 600V 30A Midget pole Tin-Plate Copper Screw |
| Fuse Installation Method | Clip-in |
| Short Circuit Current Rating (SCCR) | 10 to 100 (dependant on fuse rating) |
| Package Quantity | 1 |
