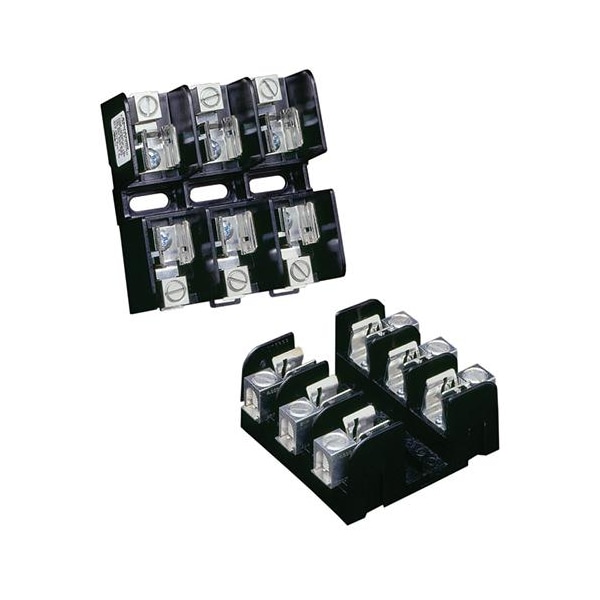

Open Fuse Block, 3 Poles, 750V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Number of Poles | 3 |
| Voltage Rating | 750V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Screw |
| Body Material | Thermoplastic |
| Width | 3 in |
| Length | 3 in |
| Height | 1.37 in |
| For Fuse Size | 51 mm L x 14 mm dia, 58 mm L x 22 mm dia |
| Fuse Type | 750V Open Style Semiconductor Fuseholders, IEC Cylindrical 14x51mm |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 200 kA |
| Torque Rating | 35 in-lb |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | UL Recognized component guide IZLT2, File E52283; CSA Certified class 6225, File 32169 |
| Mounting Hole Dia. | 0.19 in |
| Package Quantity | 1 |
