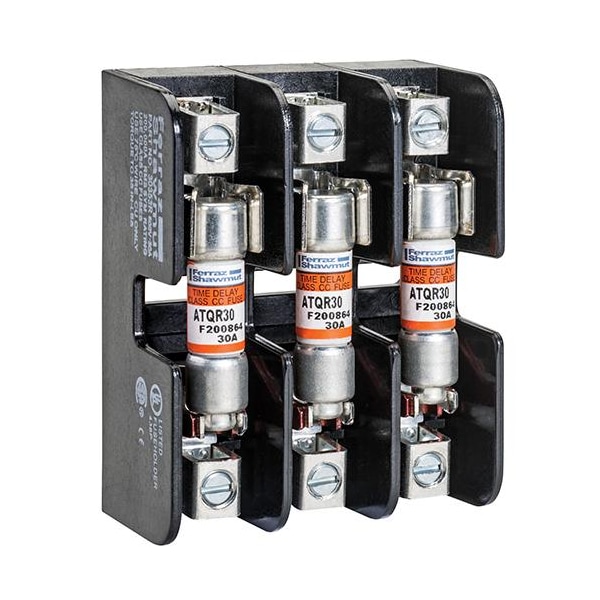

Open Fuse Block, CC UL Class, 3 Poles, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | CC |
| Series | 303 |
| Number of Poles | 3 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail, Screw |
| Wire Range | 14 AWG to 6 AWG |
| Body Material | GFPC |
| Width | 2.35 in |
| Length | 3.04 in |
| Height | 1.31 in |
| Short Circuit Current (KA) | 200 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | UL listed, guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Mounting Hole Dia. | 0.164 in |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
