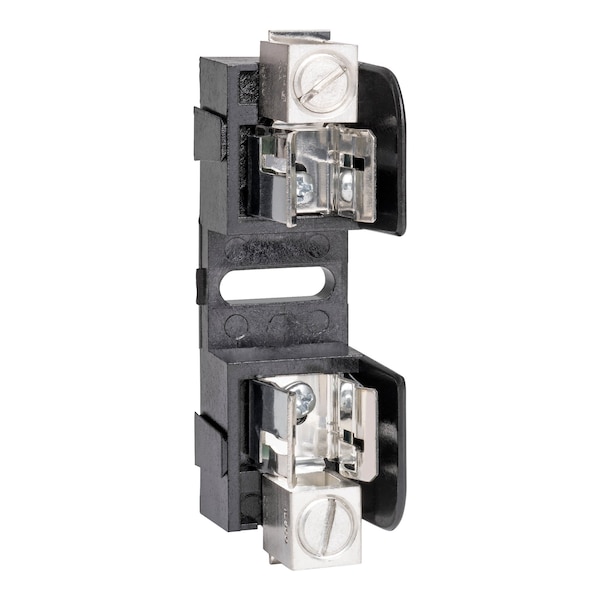

Open Fuse Block, H; K UL Class, Adder Poles, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K |
| Series | 2HKRFB |
| Number of Poles | Adder |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Screw |
| Visual Indication | Non-Indicating |
| Body Material | GFPC |
| Height | 1.38 in |
| Length | 3 in |
| For Fuse Size | 2 in L x 9/16 in dia |
| Width | 0.91 in |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 50 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Fits Fuse Block Style | Non-Rejection |
| Wire Range | 14 AWG to 2 AWG |
| Mounting Hole Dia. | 0.19 in |
| Package Quantity | 1 |
