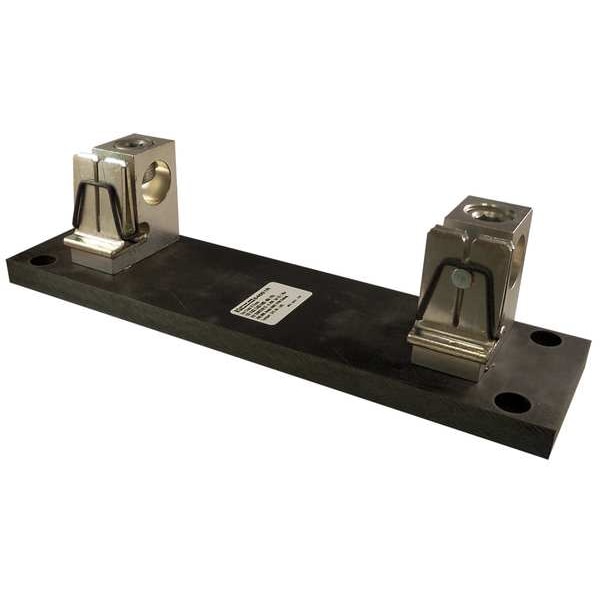

Open Fuse Block, H; K5 UL Class, 1 Poles, 201 to 400A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | 6HKRFB |
| Number of Poles | 1 |
| Amp Range | 201 to 400A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Fuse Type | Industrial |
| Width | 4 in |
| Length | 15 in |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | OTS, RFS, NOS, RES |
| Fuse Holder Code | T |
| Height | 3-3/4 in |
| For Fuse Size | 11-5/8 in L x 2-19/32 in dia |
| Wire Range | 250 MCM to 1000 MCM |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 50 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Fits Fuse Block Style | Non-Rejection |
| Mounting Hole Dia. | 5/16 in |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Package Quantity | 1 |
