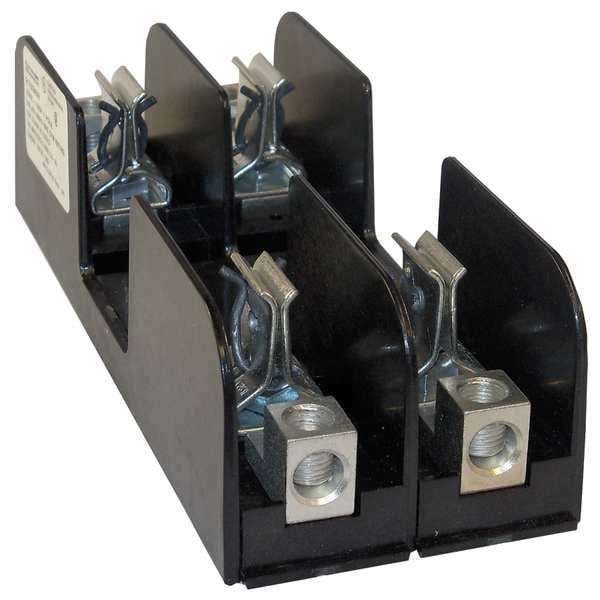

Open Fuse Block, H; K5 UL Class, 2 Poles, 61 to 100A Amp Range, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | 2HKRFB |
| Number of Poles | 2 |
| Amp Range | 61 to 100A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 2 AWG to 6 AWG |
| Fuse Block Design | Open |
| Body Material | Polycarbonate |
| Width | 3.2 in |
| Length | 8.33 in |
| Height | 2.28 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| For Fuse Series | OT, RF, NON, REN |
| Fuse Holder Code | L |
| For Fuse Size | 5-7/8 in L x 1-1/16 in dia |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 50 kA |
| Max. Operating Temp. | 80 deg C |
| Fits Fuse Block Style | Non-Rejection |
| Mounting Hole Dia. | 1/4 in |
| Rated Torque (In.-Lb.) | 120 in-lb |
| Wire Size | 6 to 2/0 AWG |
| Fuse Block or Holder DC Voltage Rating | 250VDC |
| Fuse Block or Holder AC Voltage Rating | 250VAC |
| Wiring range | 2/0-#6 |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Max Fuse Rating | 100 A |
| Connection/Terminal Type | Box |
| Short Circuit Current Rating (SCCR) | 50 |
| Installation Mounting | Direct Screw Mount |
| Short Description | Fuse Bases 250V 100A pole Tin-Plate Aluminum Copper Box |
| Fuse Installation Method | Clip-in |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
