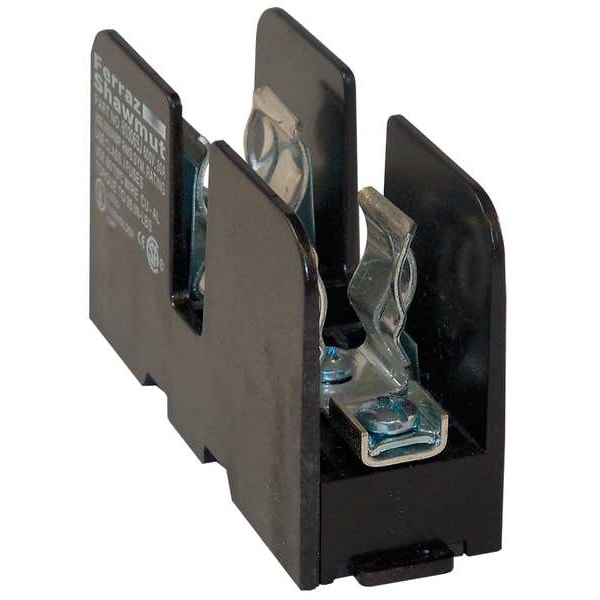

Open Fuse Block, J UL Class, 1 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | SJ |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Pressure Plate |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | GFPC |
| Fuse Holder Code | Z |
| Height | 2.2 in |
| Length | 3.9 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| For Fuse Series | AJT, A4J, HSJ |
| Width | 1.29 in |
| Features | Space Saver |
| For Fuse Size | 2-1/4 in L x 13/16 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 14 AWG to 10 AWG |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 200 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Fits Fuse Block Style | Non-Rejection |
| Mounting Hole Dia. | 1/4 in |
| Max Fuse Rating | 30 A |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Short Description | Fuse Bases 600V 30A pole Tin-Plate CU Pressure Plate with Reinf Clip |
| Installation Mounting | Screw Mount or DIN Rail |
| APPROVALS & STANDARDS | All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Short Circuit Current Rating (SCCR) | 200 |
| Fuse Installation Method | Clip-in |
| Rated Torque (In.-Lb.) | 20 in-lb |
| APPLICATIONS | Class J Blocks (600V) use with AJT, A4J, HSJ; Volts: 600VAC/DC; Amps: 30A, 60A, 100A; 200A, 400A, 600A; SCCR: 200kA |
| Package Quantity | 1 |
