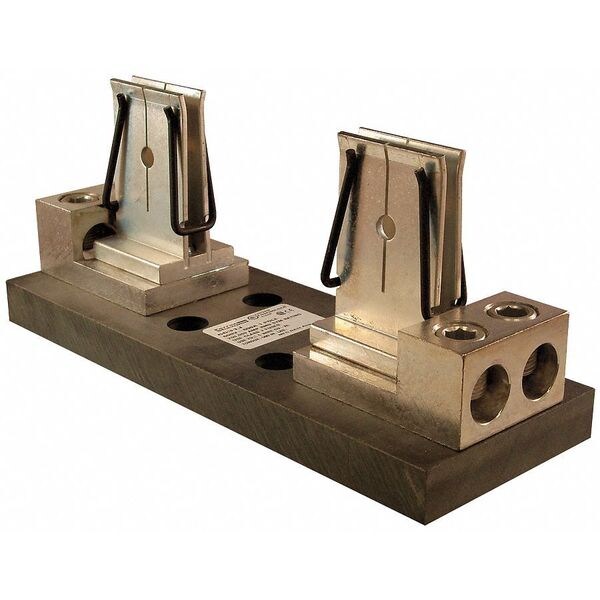

Open Fuse Block, J UL Class, 1 Poles, 401 to 600A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JFB |
| Number of Poles | 1 |
| Amp Range | 401 to 600A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Phenolic |
| Fuse Holder Code | AE |
| Height | 4.74 in |
| For Fuse Series | AJT, A4J, HSJ |
| Fuse Type | Industrial |
| Length | 11 in |
| Width | 4 in |
| Standards | CSA Certified, UL Listed |
| For Fuse Size | 8 in L x 2-1/2 in dia, 8 in L x 2-19/32 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 4 AWG to 500 MCM |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 200 kA |
| APPROVALS & STANDARDS | All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Fuse Installation Method | Clip-in |
| Mounting Hole Dia. | 5/16 in |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
