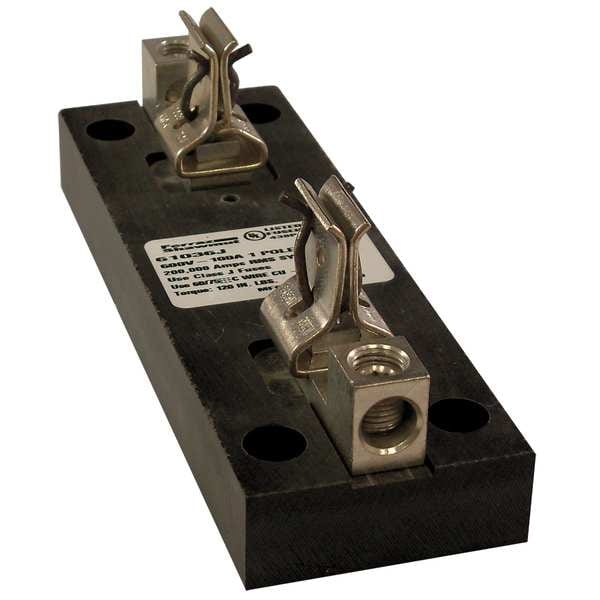

Open Fuse Block, J UL Class, 1 Poles, 61 to 100A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JFB |
| Number of Poles | 1 |
| Amp Range | 61 to 100A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Length | 7 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| For Fuse Series | AJT, A4J, HSJ |
| Features | Space Saver |
| Fuse Holder Code | AB |
| Width | 2.31 in |
| Height | 2.36 in |
| For Fuse Size | 4-5/8 in L x 1-1/8 in dia |
| Wire Range | 6 AWG to 2 AWG |
| Fits Fuse Type | Industrial |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Direct Screw Mount |
| Short Description | pole Tin-Plate Aluminum Copper Box |
| Short Circuit Current Rating (SCCR) | 200 |
| Rated Torque (In.-Lb.) | 50 in-lb |
| Max Fuse Rating | 100 A |
| APPROVALS & STANDARDS | All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Package Quantity | 1 |
