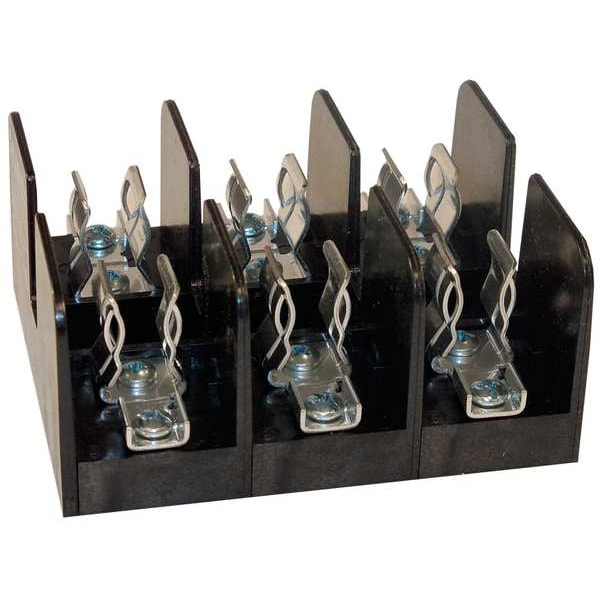

Open Fuse Block, J UL Class, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JFB |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | No |
| Wire Size | 14 to 10 AWG |
| Fuse Block Design | Open |
| Body Material | GFPC |
| Width | 4.65 in |
| Features | Space Saver |
| Length | 4 in |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | Z |
| Fuse Type | Industrial |
| For Fuse Series | AJT, A4J, HSJ |
| Height | 2.12 in |
| For Fuse Size | 2-1/4 in L x 13/16 in dia |
| Wire Range | 14 AWG to 4 AWG |
| Fits Fuse Type | Industrial |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| Max. Operating Temp. | 80 deg C |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Mounting Hole Dia. | 1/4 in |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
