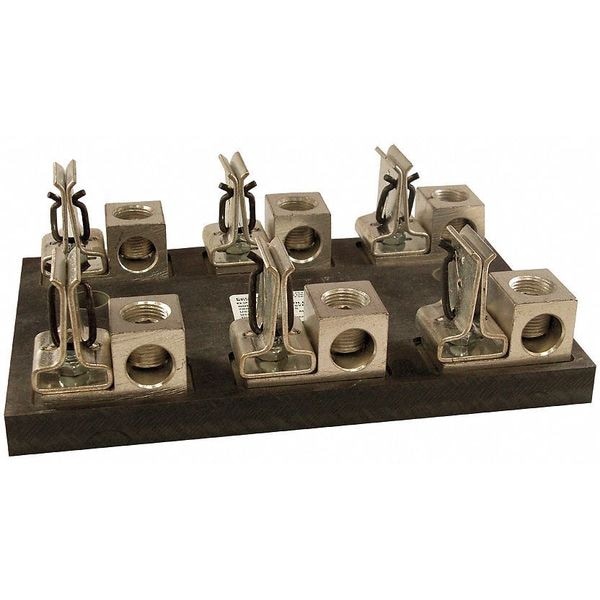

Open Fuse Block, J UL Class, 3 Poles, 101 to 200A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JFB |
| Number of Poles | 3 |
| Amp Range | 101 to 200A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Side-Clip |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 6 AWG to 350 MCM |
| Fuse Block Design | Open |
| Body Material | Phenolic |
| Width | 9.63 in |
| Length | 6.13 in |
| Height | 2.91 in |
| Features | Space Saver |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | AC |
| For Fuse Series | AJT, A4J, HSJ |
| Fuse Type | Industrial |
| For Fuse Size | 5-3/4 in L x 1-5/8 in dia |
| Short Circuit Current (KA) | 200 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Fits Fuse Block Style | Non-Rejection |
| Mounting Hole Dia. | 5/16 in |
| Installation Mounting | Direct Screw Mount |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 200 A |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| APPROVALS & STANDARDS | All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169 |
| Short Description | Fuse Bases 600V 200A pole Tin-Plate Aluminum Box Side-Clip |
| Short Circuit Current Rating (SCCR) | 200 |
| Rated Torque (In.-Lb.) | 375 in-lb |
| Package Quantity | 1 |
