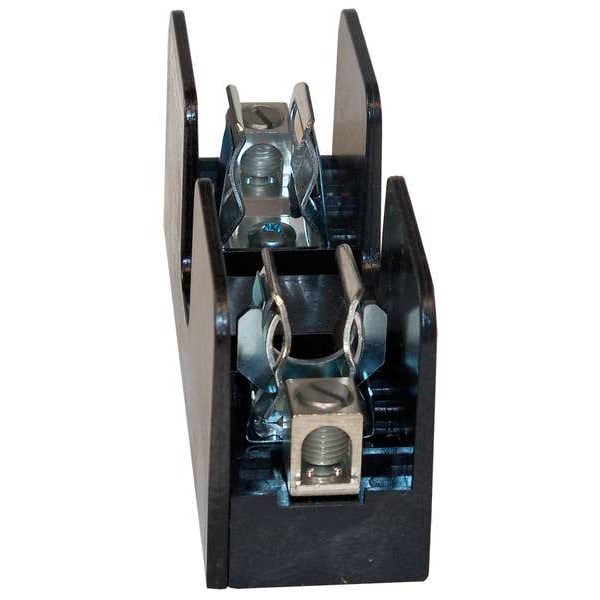

Open Fuse Block, R UL Class, 1 Poles, 31 to 60A Amp Range, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | 2HKRFB |
| Number of Poles | 1 |
| Amp Range | 31 to 60A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Polycarbonate |
| Width | 1.46 in |
| Length | 4-3/4 in |
| Height | 2.12 in |
| Fuse Type | Industrial |
| Fuse Holder Code | K |
| For Fuse Series | TR, A2D, A2K |
| Standards | CSA Certified, UL Listed |
| For Fuse Size | 3 in L x 13/16 in dia |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| Mounting Hole Dia. | 0.19 in |
| Fits Fuse Block Style | Rejection |
| Fuse Block or Holder DC Voltage Rating | 250VDC |
| Fuse Block or Holder AC Voltage Rating | 250VAC |
| Rated Torque (In.-Lb.) | 45 in-lb |
| Short Description | Fuse Bases 250V 60A Class R 1-pole Tin-Plate Aluminum Box with Reinforced Clip |
| Max Fuse Rating | 60 A |
| Fuse Installation Method | Clip-in |
| Short Circuit Current Rating (SCCR) | 200 |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Installation Mounting | Direct Screw Mount |
| Package Quantity | 1 |
