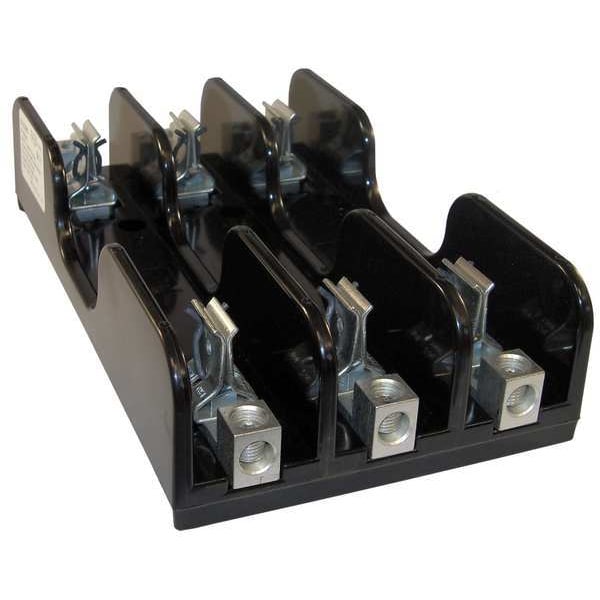

Open Fuse Block, R UL Class, 3 Poles, 61 to 100A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | 6HKRFB |
| Number of Poles | 3 |
| Amp Range | 61 to 100A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 6 AWG to 2/0 AWG |
| Fuse Block Design | Open |
| Body Material | Polycarbonate |
| Width | 5.8 in |
| Length | 10.08 in |
| Height | 2.48 in |
| Fuse Holder Code | R |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | A6D-R, A6K-R, TRS-R |
| Features | Solid State SmartSpot(R) Indicator |
| Fuse Type | Industrial |
| For Fuse Size | 7-7/8 in L x 1-5/16 in dia |
| Short Circuit Current (KA) | 200 kA |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Mounting Hole Dia. | 1/4 in |
| Fits Fuse Block Style | Rejection |
| Rated Torque (In.-Lb.) | 120 in-lb |
| Installation Mounting | Screw Mount or DIN Rail |
| Short Circuit Current Rating (SCCR) | 200 |
| Wire Size | 6 to 2/0 AWG |
| Max Fuse Rating | 100 A |
| Fuse Installation Method | Clip-in |
| Short Description | Fuse Bases 600V 100A Class R 3-pole Tin-Plate AL Box with Reinforced Clip |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Package Quantity | 1 |
