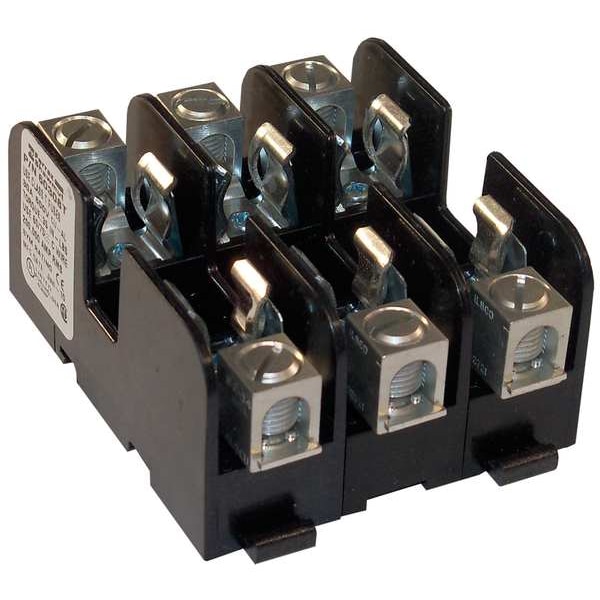

Open Fuse Block, T UL Class, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | GFB |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | GFPC |
| Width | 2-3/4 in |
| Length | 3.13 in |
| Height | 1.56 in |
| Standards | CSA Certified, UL Listed |
| Features | Unique Adder Block Design |
| Fuse Type | Industrial |
| For Fuse Series | A6T |
| For Fuse Size | 1-1/2 in L x 9/16 in dia |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| Mounting Hole Dia. | 0.19 in |
| Fits Fuse Block Style | Non-Rejection |
| Max Fuse Rating | 30 A |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Screw Mount or DIN Rail |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Short Circuit Current Rating (SCCR) | 200 |
| Short Description | Fuse Bases 600V 30A pole Tin-Plate Aluminum Box with Reinforced Clip, Bases 600V 30A Class pole Tin-Plate Aluminum Box with Reinforced Clip, Fuse Bases 600V 30A Class Plate Aluminum Box with Reinforced Clip, Fuse Bases 600V 30A Class pole Tin- Aluminum Box with Reinforced Clip, Fuse Bases 600V 30A Class pole Tin-Plate Aluminum Box |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Rated Torque (In.-Lb.) | 35 in-lb |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Package Quantity | 1 |
