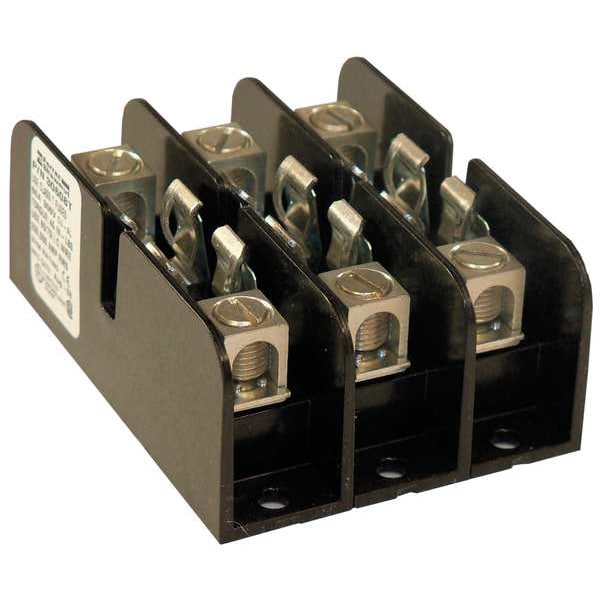

Open Fuse Block, T UL Class, 3 Poles, 31 to 60A Amp Range, 300V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | 3TFB |
| Number of Poles | 3 |
| Amp Range | 31 to 60A |
| Voltage Rating | 300V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Polycarbonate |
| Width | 1.85 in |
| Length | 3.65 in |
| Height | 1.47 in |
| For Fuse Series | A3T |
| Fuse Type | Industrial |
| Standards | CSA Certified, UL Listed |
| Features | Unique Adder Block Design |
| For Fuse Size | 7/8 in L x 9/16 in dia |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 200 kA |
| Mounting Hole Dia. | 0.19 in |
| Fits Fuse Block Style | Non-Rejection |
| Rated Torque (In.-Lb.) | 45 in-lb |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Direct Screw Mount |
| Short Description | Fuse Bases 300V 60A pole Tin-Plate Aluminum Box with Reinforced Clip |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Max Fuse Rating | 60 A |
| Short Circuit Current Rating (SCCR) | 200 |
| Package Quantity | 1 |
