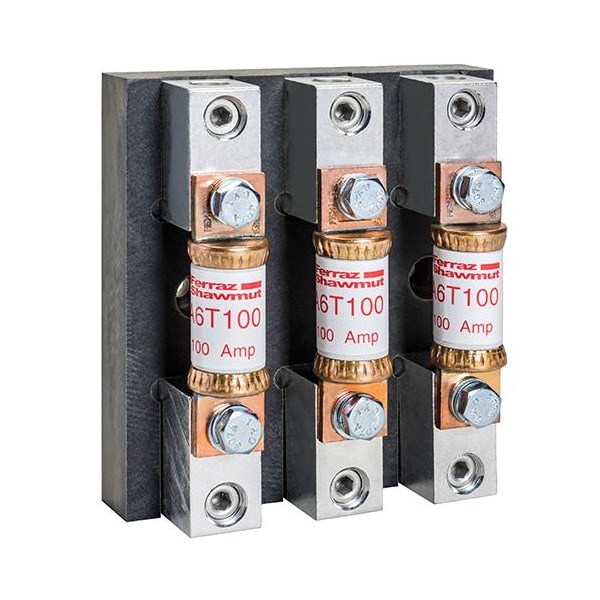

Open Fuse Block, T UL Class, 3 Poles, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Number of Poles | 3 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Screw |
| Visual Indication | Non-Indicating |
| Wire Range | 12 AWG to 2 AWG |
| Body Material | Phenolic |
| Width | 4.38 in |
| Length | 4.78 in |
| Height | 1.95 in |
| For Fuse Size | 2-15/16 in L x 13/16 in dia, 2-61/64 in L x 3/4 in dia |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169 |
| Fuse Installation Method | Clip-in |
| Mounting Hole Dia. | 0.19 in |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
