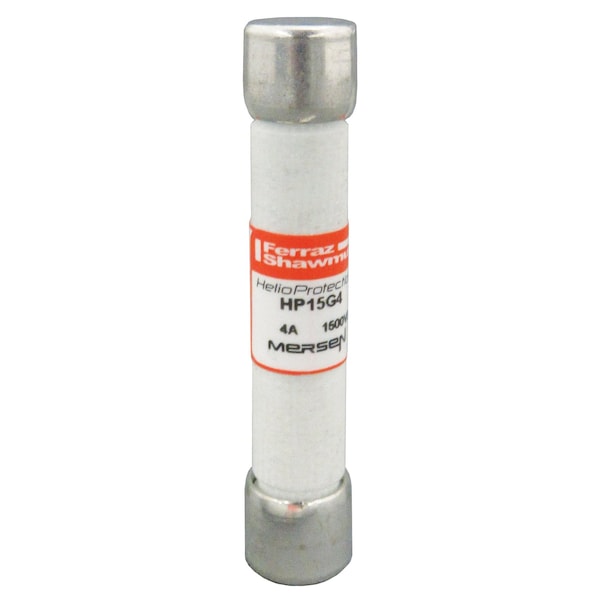

PV Fuse, HP Series, 4A, Fast-Acting, Cylindrical
| Item | PV Fuse |
|---|---|
| Series | HP |
| Amps | 4A |
| Speed | Fast-Acting |
| DC Voltage Rating | 1500V DC |
| Body Style | Cylindrical |
| Interrupt Rating | 50kA |
| Body Material | GMG |
| Diameter | 0.039 in |
| Length | 2.24 in |
| Fuse Voltage Rating | 1,500 V |
| Class | G PV |
| Fuse Amps | 4 A |
| Fuse Class | Photovoltaic |
| Mounting | Clip |
| Body/Insulating Material | GMG |
| Ampere Rating | 4 A |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Nickel-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Rated voltage DC UL | 1,500 V |
| APPROVALS & STANDARDS | UL Listed to Standard UL2579 File E333668; IEC 60269-6 |
| APPLICATIONS | In-line PV module protection |
| Rated voltage DC IEC | 1500 V |
| Package Quantity | 1 |
