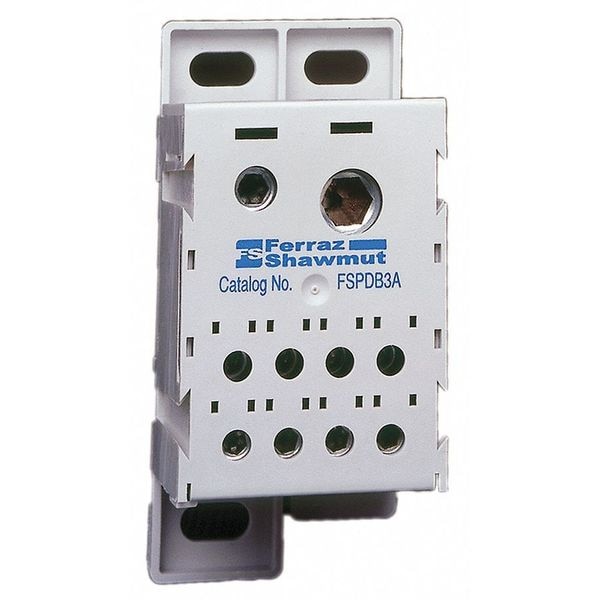

Pwr Dist Block, 310A, 1P, 1000V, 2P Primary
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 310 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 14 to 2/0 AWG, 6 AWG to 350 MCM |
| Secondary Connection/Pole | 8 |
| Secondary Wire Range (AWG) | 14 to 8 AWG |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 1000V AC/DC |
| Standards | CE Component IEC, CSA Class 6228, IEC-947-7-1, 529, 68-2-6, UL 1059 |
| Length | 3.97 in |
| Width | 1.85 in |
| Depth | 2.53 in |
| Length (Straight Wireway) | 3.97 in |
| Housing Material | Nylon |
| Number of Circuits | 1 |
| Overall Depth | 2.53 in |
| Maximum Current - Aluminum Conductor | 310 A |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| Maximum Current - Copper Conductor | 310 A |
| RoHS Compliant | Yes |
| Line Side Stud Size | Not Applicable |
| Load Connections/Pole | 8 |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Line Side Connection Type | Lug |
| Overall Width | 2.53 in |
| Maximum Voltage | 1,500 V |
| For Line Copper Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG, 350 kcmil |
| Load Side Connection Type | Lug |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| Line Connections/Pole | 2 |
| Overall Length | 3.97 in |
| Compatible with Series | FSPDB |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Special Features | Captive Termination Screws, Compact Modularity, Snap On DIN-Rail Mounting |
| Primary Wire Range | 14 to 2/0 AWG, 6 AWG to 350 kcmil |
| Secondary Wire Range | 14 to 2 AWG |
| For Conductor Material | Aluminum |
| Load Side Stud Size | Not Applicable |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Terminal Material | Aluminum |
| Mounting | Screw Mount or DIN Rail |
| Includes | Cap plugs; Circuit identification markers; End anchors |
| Max. Operating Temp. | 80°C |
| Features | Finger-safe protection; Flammability Rating 94 V-0 |
| Product Length | 3.97 in |
| Number of Openings per Pole (Primary) | 2 |
| Rated voltage AC UL | 600 V |
| Hole Diameter (Secondary) | 0.31 in |
| Short Circuit Rating (Class RK1) | 400 kA |
| Short Circuit Rating (Class G) | 60 kA |
| Short Circuit Rating (Class L) | 0 kA |
| Connector Type (Secondary) | Box |
| Torque Rating (Primary) | 350-3/0 200; 2/0-#1 100; #2-#6 80; #8-#14 35 |
| Short Circuit Rating (Standalone) | 10 kA |
| Connector Type (Primary) | Box |
| Product Width | 2.53 in |
| Short Circuit Rating (Class T) | 400 kA |
| Hole Diameter (Primary) | 2 in |
| Wire Range (Secondary) | #2 - #14 |
| APPLICATIONS | Splicing cables; Splitting primary power into a variety of secondary circuits; Providing a fixed junction tap-off point |
| Number of Openings per Pole (Secondary) | 8 |
| Short Circuit Rating (Class RK5) | 200 kA |
| Body/Insulating Material | Nylon |
| Short Circuit Rating (Class J) | 400 kA |
| Wire Range (Primary) | 350 mcm & 2/0 - #14 |
| Short Description | FSPDB UL1059 AL 600V 310A 1-pole 2 in/8 out Box/Box |
| Short Circuit Rating (Class CC) | 30 kA |
| Installation Mounting | Screw Mount |
| Product Height | 2.53 in |
| Item Description (ERP) | FINGER SAFE AL PDB (1)350 KCMI |
| Connector Material | Tin-plated Aluminum |
| Rated voltage DC UL | 1,500 V |
| Torque Rating (Secondary) | #8-#14 35 |
| APPROVALS & STANDARDS | UL Recognized Component Guide XCFR2, File E73571; CSA Certified: Class 6228, File 69363; IEC-947-7-1, 529, 68-2-6, CE Marked |
| Package Quantity | 1 |
