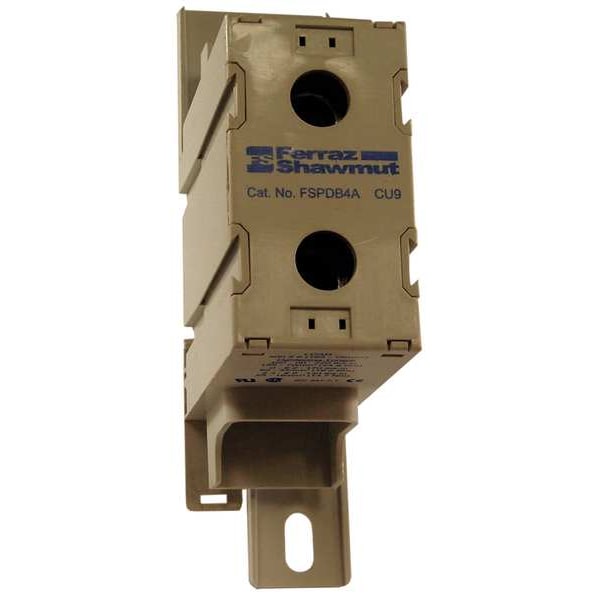

Bloque de distribución de energía, 335A, 1 fase, calibre 6AWG-400 MCM, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 335 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 400 MCM |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 6 AWG to 400 MCM |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 600V AC/DC |
| Width | 1.54 in |
| Depth | 3.15 in |
| Length | 5.73 in |
| Standards | CE Component IEC, CSA Class 6228, IEC-947-7-1, 529, 68-2-6, UL 1059 |
| Length (Straight Wireway) | 5.73 in |
| Load Side Stud Size | Not Applicable |
| Line Side Connection Type | Lug |
| Primary Wire Range | 6 AWG to 400 kcmil |
| Compatible with Series | FSPDB |
| Maximum Current - Copper Conductor | 335 A |
| For Load Copper Wire Size - Minimum | 6 AWG |
| Overall Depth | 3.15 in |
| For Line Aluminum Wire Size - Maximum | 400 kcmil |
| For Line Copper Wire Size - Minimum | 6 AWG |
| Secondary Wire Range | 6 AWG to 400 MCM |
| Housing Material | Nylon |
| Load Side Connection Type | Lug |
| Line Side Stud Size | Not Applicable |
| For Line Copper Wire Size - Maximum | 400 kcmil |
| For Load Copper Wire Size - Maximum | 400 kcmil |
| Line Connections/Pole | 1 |
| Number of Circuits | 1 |
| Overall Width | 1.54 in |
| Load Connections/Pole | 1 |
| Maximum Voltage | 1,500 V |
| Maximum Current - Aluminum Conductor | 335 A |
| For Load Aluminum Wire Size - Maximum | 400 kcmil |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| For Conductor Material | Aluminum |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| Special Features | Captive Termination Screws, Compact Modularity, Snap On DIN-Rail Mounting |
| RoHS Compliant | Yes |
| Overall Length | 5.73 in |
| Terminal Material | Aluminum |
| Mounting | Screw Mount or DIN Rail |
| Includes | Cap plugs; Circuit identification markers; End anchors |
| Max. Operating Temp. | 80°C |
| Features | Finger-safe protection; Flammability Rating 94 V-0 |
| Rated voltage AC UL | 600 V |
| Short Circuit Rating (Class L) | 0 kA |
| APPROVALS & STANDARDS | UL Recognized Component Guide XCFR2, File E73571; CSA Certified: Class 6228, File 69363; IEC-947-7-1, 529, 68-2-6, CE Marked |
| Short Description | FSPDB UL1059 AL 600V 335A 1-pole 1 in/1 out Box/Box |
| Installation Mounting | Screw Mount |
| Hole Diameter (Secondary) | 0.87 in |
| Connector Material | Tin-plated Aluminum |
| Rated voltage DC UL | 1,500 V |
| Connector Type (Secondary) | Box |
| Connector Type (Primary) | Box |
| Short Circuit Rating (Standalone) | 10 kA |
| APPLICATIONS | Splicing cables; Splitting primary power into a variety of secondary circuits; Providing a fixed junction tap-off point |
| Short Circuit Rating (Class RK1) | 200 kA |
| Product Length | 5.73 in |
| Short Circuit Rating (Class G) | 60 kA |
| Product Width | 1.54 in |
| Short Circuit Rating (Class RK5) | 100 kA |
| Wire Range (Primary) | 400 - #6 |
| Hole Diameter (Primary) | 0.87 in |
| Short Circuit Rating (Class J) | 400 kA |
| Torque Rating (Secondary) | 400-2/0 220; 1/0-#2 170; #3-#6 130 |
| Item Description (ERP) | Finger safe Al PDB (1) 400kcmi |
| Short Circuit Rating (Class CC) | 30 kA |
| Number of Openings per Pole (Secondary) | 1 |
| Product Height | 3.15 in |
| Torque Rating (Primary) | 400-2/0 220; 1/0-#2 170; #3-#6 130; |
| Short Circuit Rating (Class T) | 400 kA |
| Body/Insulating Material | Nylon |
| Number of Openings per Pole (Primary) | 1 |
| Wire Range (Secondary) | 400 - #6 |
| Package Quantity | 1 |
