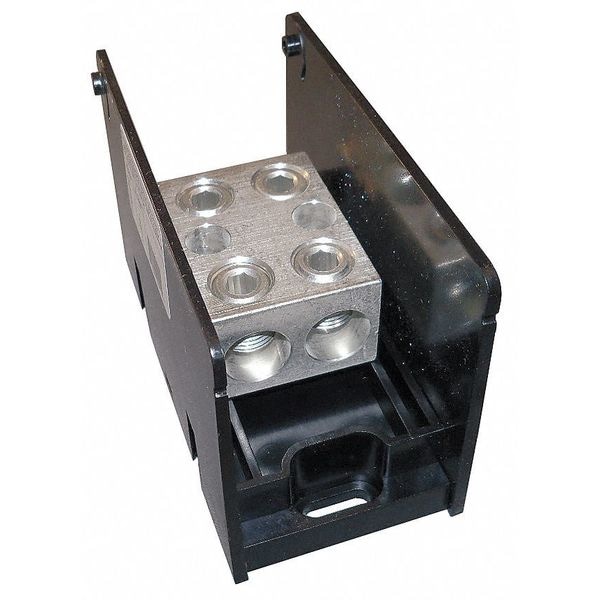

Bloque de distribución de energía, 620A, 1 polo, calibre 6AWG-350MCM, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 620 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 6 AWG to 350 MCM |
| Secondary Connection/Pole | 2 |
| Secondary Wire Range (AWG) | 6 AWG to 350 MCM |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 5.7 in |
| Standards | CSA Class 6228-01, UL 1953 |
| Depth | 3.55 in |
| Width | 2.73 in |
| Length (Straight Wireway) | 5.7 in |
| Primary Wire Range | 6 AWG to 350 kcmil |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| Line Side Connection Type | Lug |
| For Line Aluminum Wire Size - Maximum | 350 kcmil |
| Housing Color | Black |
| UL 94 Flammability Rating | V-0 |
| Terminal Material | Aluminum |
| For Load Copper Wire Size - Maximum | 350 kcmil |
| For Line Copper Wire Size - Minimum | 6 AWG |
| RoHS Compliant | Yes |
| For Load Aluminum Wire Size - Maximum | 350 kcmil |
| Load Side Connection Type | Lug |
| Secondary Wire Range | 6 AWG to 350 MCM |
| Load Connections/Pole | 2 |
| Maximum Voltage | 1,000 V AC/DC |
| Line Connections/Pole | 2 |
| Overall Depth | 3.55 in |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| Maximum Current - Copper Conductor | 620 A |
| Maximum Current - Aluminum Conductor | 620 A |
| Housing Material | GFPC |
| Overall Width | 2.73 in |
| For Load Copper Wire Size - Minimum | 6 AWG |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| For Conductor Material | Aluminum |
| Overall Length | 5.7 in |
| Number of Circuits | 1 |
| Mounting | Direct Screw Mount |
| Includes | Polycarbonate Safety Covers |
| Features | Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available |
| Max. Operating Temp. | 80°C |
| Short Circuit Rating (Class G) | 60 kA |
| APPROVALS & STANDARDS | UL Listed to subject 1953, File E352417 unless noted otherwise; CSA Certified Class 6228 01 |
| Installation Mounting | Direct Screw Mount |
| Number of Openings per Pole (Primary) | 2 |
| Product Length | 5.7 in |
| Connector Type (Primary) | Box |
| Product Width | 2.73 in |
| Wire Range (Secondary) | 350-#6 |
| Product Height | 3.55 in |
| Hole Diameter (Secondary) | 3/4 in |
| Number of Openings per Pole (Secondary) | 2 |
| Item Description (ERP) | PWR DIS BLK AL LG 620A 1P 2 |
| Wire Range (Primary) | 350-#6 |
| Body/Insulating Material | GFPC |
| Rated voltage DC UL | 1,000 V |
| Short Circuit Rating (Standalone) | 10 kA |
| Short Description | MPDB UL1953 AL LARGE 1000V 620A 1-pole 2 350-#6 in-2 350-#6 out Box/Box |
| Connector Type (Secondary) | Box |
| Short Circuit Rating (Class CC) | 30 kA |
| Short Circuit Rating (Class RK5) | 600 kA |
| Hex/Screw Size & Type (Primary) | 11/16-16 x .88 |
| Connector Material | Tin-plated Aluminum |
| Torque Rating (Primary) | 350-#6 275 |
| Hole Diameter (Primary) | 3/4 in |
| Torque Rating (Secondary) | 350-#6 275 |
| APPLICATIONS | Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points. |
| Short Circuit Rating (Class L) | 800 kA |
| Hex/Screw Size & Type (Secondary) | 11/16-16 x .88 |
| Rated voltage AC UL | 1,000 V |
| Short Circuit Rating (Class RK1) | 600 kA |
| Short Circuit Rating (Class T) | 800 kA |
| Short Circuit Rating (Class J) | 600 kA |
| Package Quantity | 1 |
