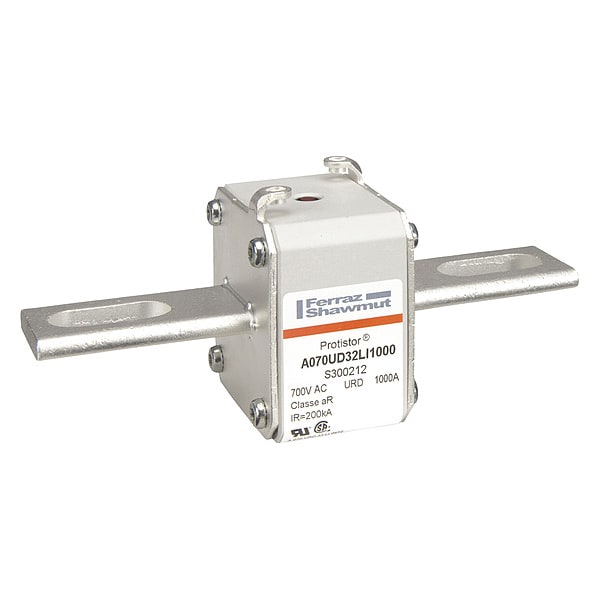

Semiconductor Fuse, A070 Series, 1000A, Fast-Acting, 700V AC, Square
| Item | Semiconductor Fuse |
|---|---|
| Series | A070 |
| Amps | 1000A |
| Speed | Fast-Acting |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Square |
| Visual Indication | Indicating |
| Interrupt Rating | 200kA at 700V AC |
| Body Material | Ceramic |
| Diameter | 2-15/16 in |
| Length | 6 in |
| Equivalent Brand and Series | Bussmann FWP, Littelfuse L70S, Mersen A070 |
| Equivalent Series | FWP, A070, L70S |
| Fits Fuse Block Style | Non-Rejection |
| Standards | UL Recognized Component, IEC 60269-4 certified, CSA 012636 0 000, CCC approved |
| Width | 2-15/16 in |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Indicating / Nonindicating | Indicating |
| Fuse Speed | Fast Acting |
| Mounting | Bolted |
| Connection Material | Silver-Plated Copper |
| Package Quantity | 1 |
