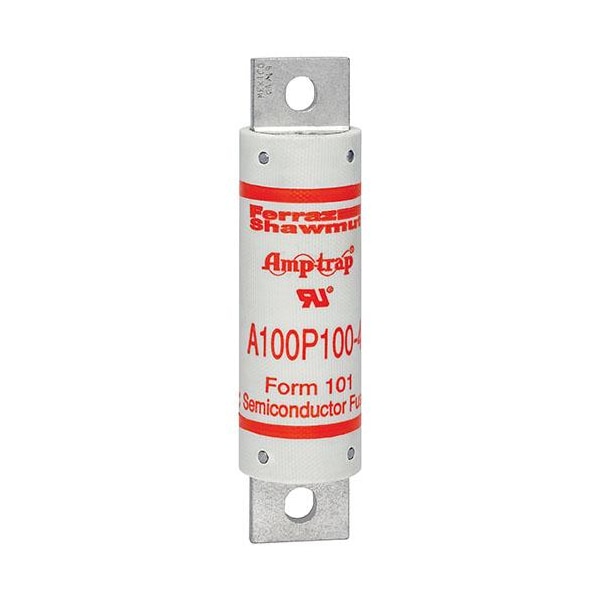

Semiconductor Fuse, A100P Series, 100A, Fast-Acting, 1000V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A100P |
| Amps | 100A |
| Speed | Fast-Acting |
| AC Voltage Rating | 1000V AC |
| DC Voltage Rating | 750V DC |
| Body Style | Bolt-On |
| Interrupt Rating | 200kA |
| Body Material | GMG |
| Diameter | 1.22 in |
| Length | 5 in |
| Fuse Speed | High Speed |
| Connection Material | Brass |
| Mounting | Bolted |
| APPROVALS & STANDARDS | UL recognized component File E60314; AC: UL guide no. JFHR2 (35-600A); DC: self-certified |
| APPLICATIONS | Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices |
| Connection/Terminal Material | Brass |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Ampere Rating | 100 A |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
