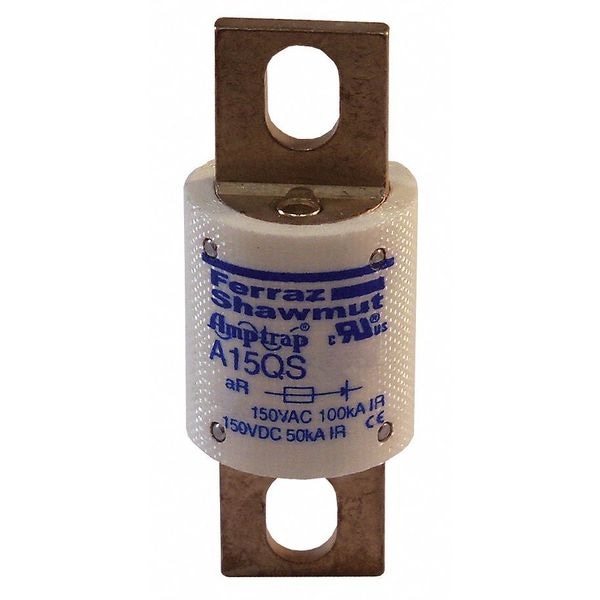

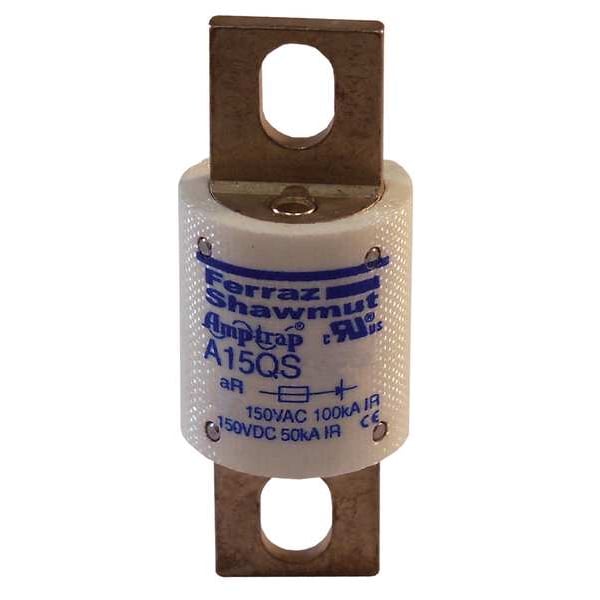

Semiconductor Fuse, A15QS Series, 250A, Fast-Acting, 150V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A15QS |
| Amps | 250A |
| Speed | Fast-Acting |
| AC Voltage Rating | 150V AC |
| DC Voltage Rating | 150V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 150V AC, 50kA at 150V DC |
| Body Material | GMG |
| Diameter | 1.13 in |
| Length | 2.66 in |
| Equivalent Brand and Series | Bussmann FWA, Littelfuse L15S, Mersen A15QS |
| Equivalent Series | A15QS, FWA, L15S |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Indicating / Nonindicating | Nonindicating |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314, CSA Certified |
| Mounting | Bolted |
| Connection Material | Brass |
| APPLICATIONS | Protection of heavy duty devices such as electrochemical rectifiers |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: UL guide no. JFHR2 (1-4000A); DC tested to UL standard 198L parameters (1-4000A) |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Ampere Rating | 250 A |
| Connection/Terminal Material | Brass |
| Package Quantity | 1 |
