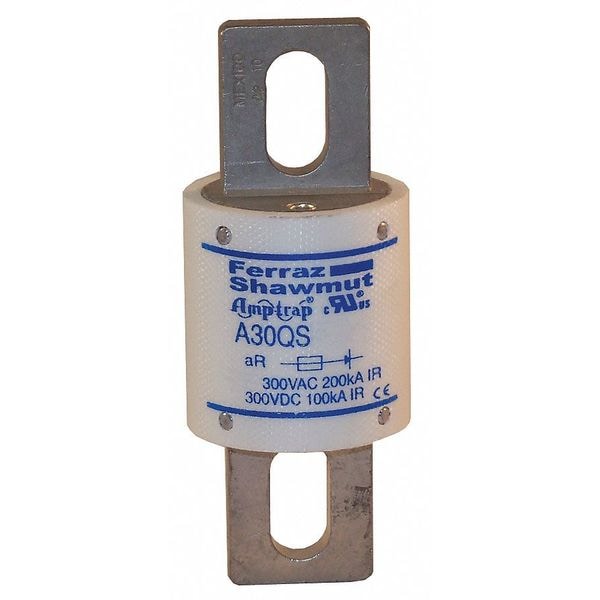

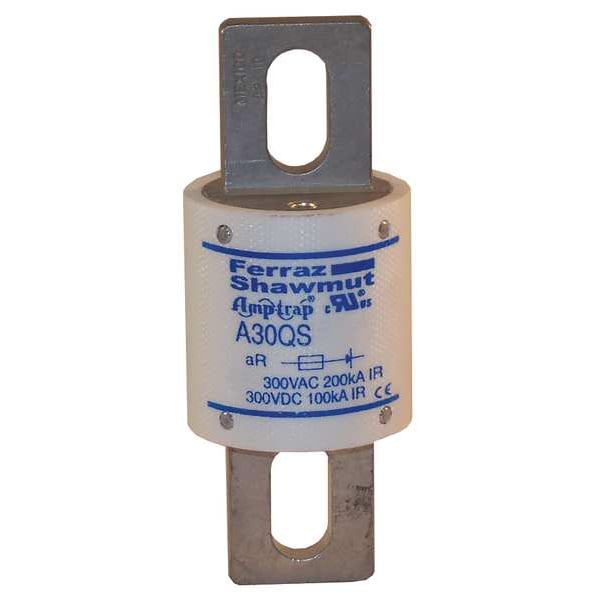

Semiconductor Fuse, A30QS Series, 400A, Fast-Acting, 300V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A30QS |
| Amps | 400A |
| Speed | Fast-Acting |
| AC Voltage Rating | 300V AC |
| DC Voltage Rating | 300V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 300V DC, 200kA at 300V AC |
| Body Material | GMG |
| Diameter | 1-1/2 in |
| Length | 3.84 in |
| Equivalent Brand and Series | Bussmann FWX, Littelfuse L25S, Mersen A30QS |
| Equivalent Series | A30QS, FWX, L25S |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Indicating / Nonindicating | Nonindicating |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314 |
| Element | Single |
| Mounting | Bolted |
| Connection Material | Tin-Plated Brass |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: UL guide no. JFHR2 (35-4500A) |
| AC Max I.R./Breaking Capacity: I1 | 52 kA |
| Ampere Rating | 400 A |
| APPLICATIONS | Protection of 300V (or less) heavy duty rectifiers and similar heavy duty power supplies |
| Connection/Terminal Material | Brass |
| Package Quantity | 1 |
