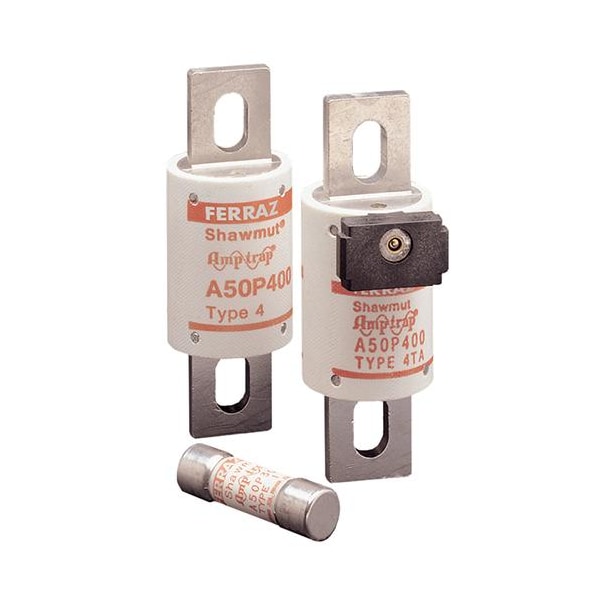

Semiconductor Fuse, A50P Series, 60A, Fast-Acting, 500V AC, Blade
| Item | Semiconductor Fuse |
|---|---|
| Series | A50P |
| Amps | 60A |
| Speed | Fast-Acting |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 450V DC |
| Body Style | Blade |
| Interrupt Rating | 25kA |
| Body Material | GMG |
| Diameter | 0.81 in |
| Length | 3.19 in |
| Equivalent Brand and Series | Mersen |
| Fuse Speed | High Speed |
| Mounting | Bolted |
| Connection Material | Tin-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 25 kA |
| Ampere Rating | 60 A |
| APPROVALS & STANDARDS | UL Recognized Component UL File 60314; AC: UL Guide No. JFHR2 (10-800A); DC: UL Guide No.JFHR2 (35-800A) |
| APPLICATIONS | Protection of DC drives, UPS and other equipment of 500 volts or less |
| Connection/Terminal Material | Tin-Plated Copper |
| Package Quantity | 1 |
