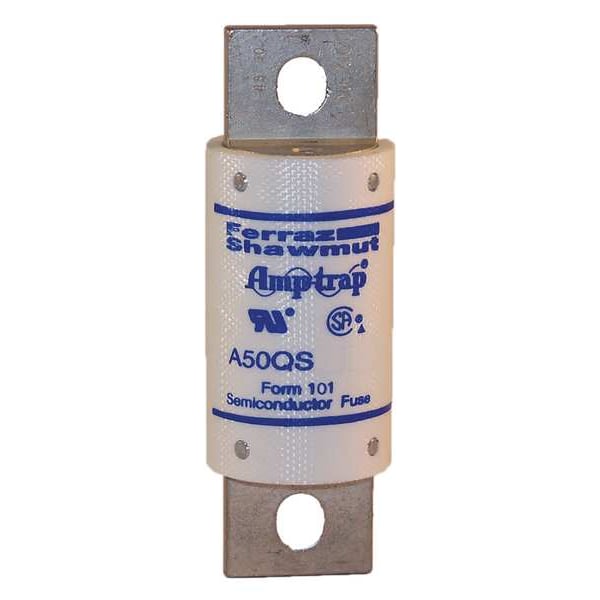

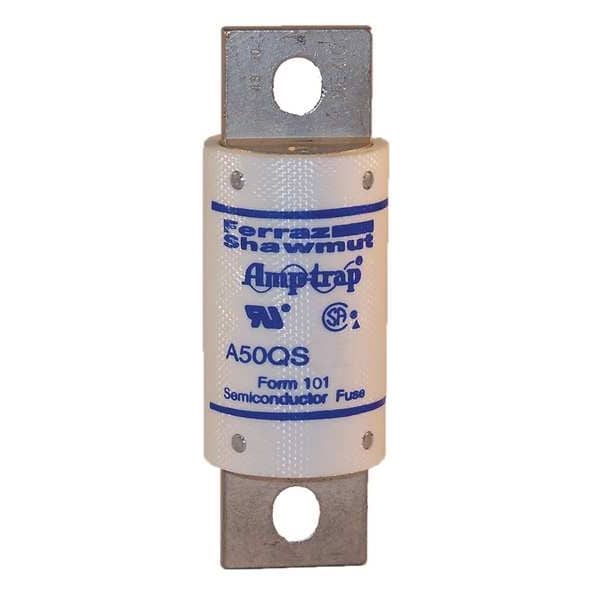

Semiconductor Fuse, A50QS Series, 125A, Fast-Acting, 500V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A50QS |
| Amps | 125A |
| Speed | Fast-Acting |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 500V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 500V AC, 87kA at 500V DC |
| Body Material | GMG |
| Diameter | 1.22 in |
| Length | 3.63 in |
| Equivalent Brand and Series | A50QS, Bussmann FWH, Littelfuse L50S, Mersen A50P |
| Equivalent Series | FWH, A50P, A50QS, L50S |
| Fits Fuse Block Style | Non-Rejection |
| Rejection / Nonrejection | Nonrejection |
| Length (Straight Wireway) | 3-5/8 in |
| Mounting | Bolted |
| Connection Material | Brass |
| Element | Single |
| Standards | CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636 |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| APPROVALS & STANDARDS | UL recognized component UL File 60314; AC: UL guide no. JFHR2; DC Tested to UL standard 198L parameters (70-1200A); CSA Certified LR12636 |
| Connection/Terminal Material | Brass |
| Fuse Speed | Fast Acting |
| Short Description | Semiconductor Fuse Amp-Trap® 500V 125A aR High Speed A50QS |
| Package Quantity | 1 |
