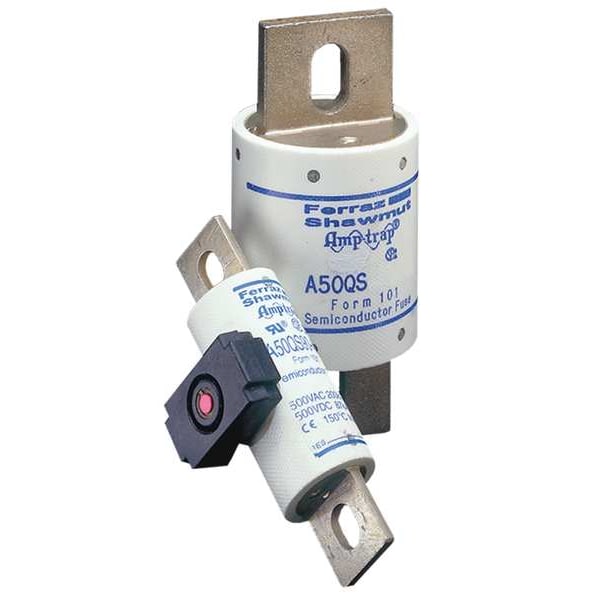

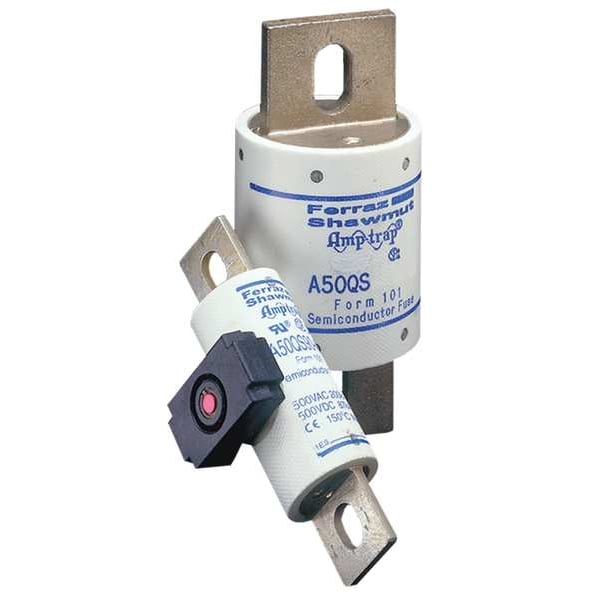

Semiconductor Fuse, A50QS Series, 250A, Fast-Acting, 500V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A50QS |
| Amps | 250A |
| Speed | Fast-Acting |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 500V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 500V AC, 87kA at 500V DC |
| Body Material | GMG |
| Diameter | 1-1/2 in |
| Length | 4.34 in |
| Equivalent Brand and Series | A50QS, Bussmann FWH, Littelfuse L50S, Mersen A50P |
| Equivalent Series | FWH, A50P, A50QS, L50S |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Mounting | Bolted |
| Standards | CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636 |
| Connection Material | Tin-Plated Copper |
| Connection/Terminal Material | Tin-Plated Copper |
| Fuse Speed | Fast Acting |
| Short Description | Semiconductor Fuse Amp-Trap® 500V 250A aR High Speed A50QS |
| Products By Industry | Electrical |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| APPROVALS & STANDARDS | UL recognized component UL File 60314; AC: UL guide no. JFHR2; DC Tested to UL standard 198L parameters (70-1200A); CSA Certified LR12636 |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Package Quantity | 1 |
