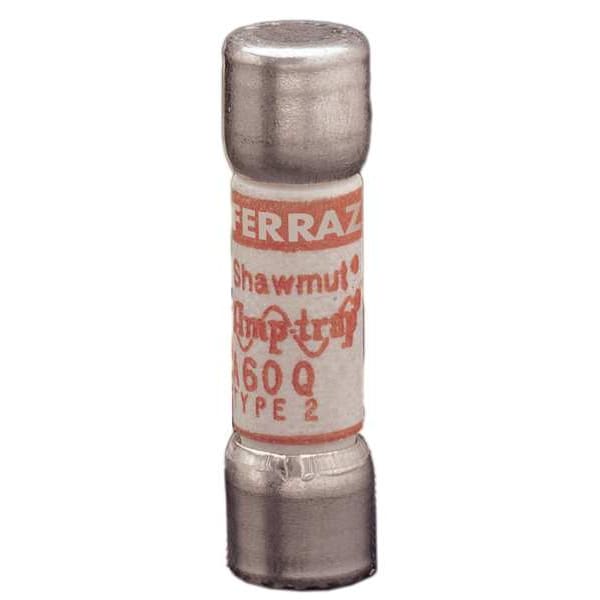

Semiconductor Fuse, A60Q Series, 40A, Fast-Acting, 600V AC, Cylindrical
| CAD Available | Yes |
|---|---|
| Item | Semiconductor Fuse |
| Series | A60Q |
| Amps | 40A |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 600V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 600V DC, 200kA at 600V AC |
| Body Material | GMG |

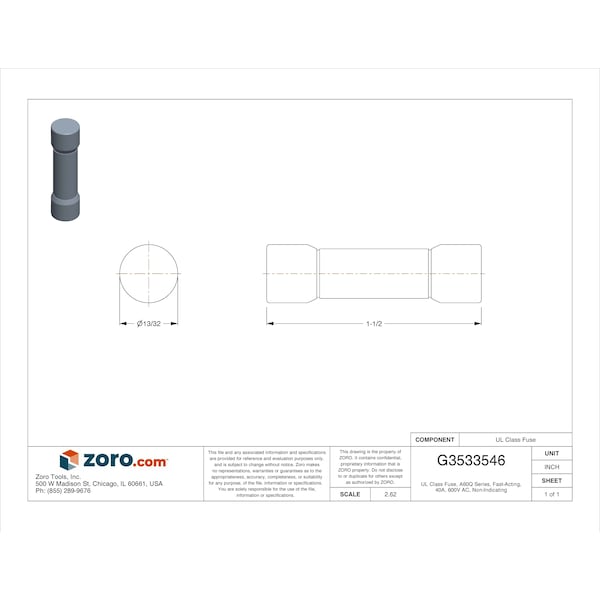

| Diameter | 0.41 in |
| Length | 1-1/2 in |
| Equivalent Brand and Series | Bussmann FWC, Mersen A60Q |
| Equivalent Series | A60Q, FWC |
| Fits Fuse Block Style | Non-Rejection |
| Rejection / Nonrejection | Nonrejection |
| Length (Straight Wireway) | 1-1/2 in |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| Element | Single |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314 |
| Fuse Speed | Fast Acting |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Frequency | 50/60 Hz |
| Short Description | Semiconductor Fuse Amp-Trap® 600V 40A aR High Speed A60Q |
| APPROVALS & STANDARDS | UL Recognized component; AC: UL guide JFHR2 File E60314; DC: UL file E60314 |
| Connection/Terminal Material | Tin-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Package Quantity | 1 |
