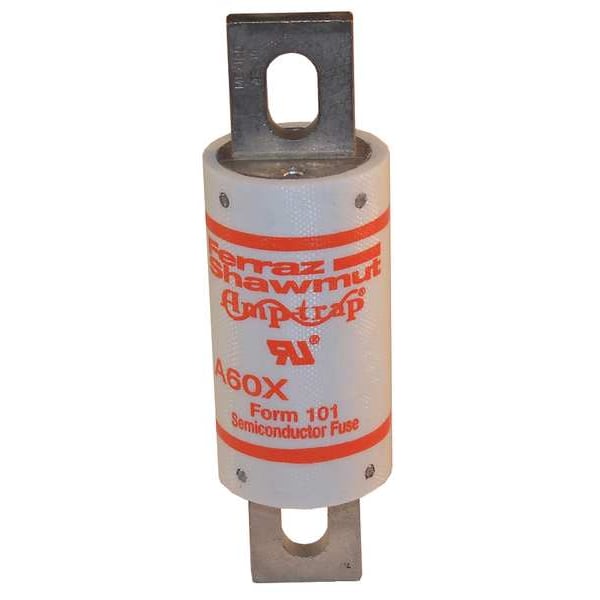

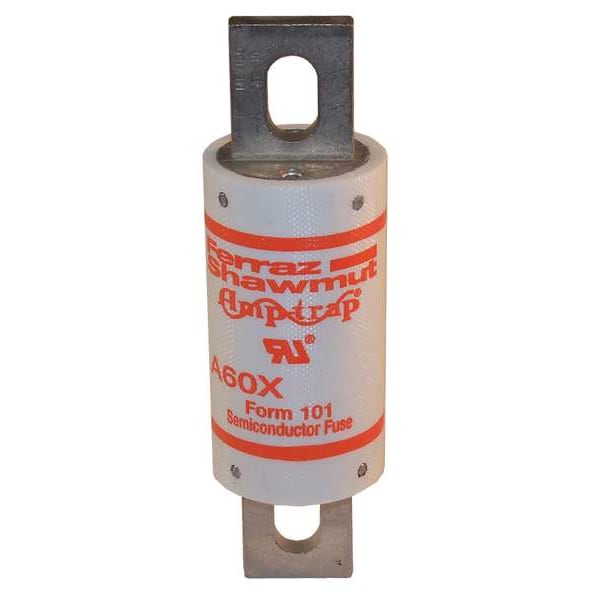

Semiconductor Fuse, A60X Series, 300A, Fast-Acting, 600V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A60X |
| Amps | 300A |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Material | GMG |
| Diameter | 1-1/2 in |
| Length | 5.13 in |
| Equivalent Brand and Series | Bussmann KAC, KBC, L60S, Littelfuse KLC, Mersen A60X |
| Equivalent Series | A60X, KAC, KLC, KBC, L60S |
| Fits Fuse Block Style | Non-Rejection |
| Rejection / Nonrejection | Nonrejection |
| Ampere Rating | 300 A |
| Element | Single |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314 |
| Connection Material | Brass |
| Mounting | Bolted |
| APPLICATIONS | Protection of heavy traction and electrochemical as well as rectifiers and other heavy-duty equipment |
| APPROVALS & STANDARDS | UL recognized component UL file E60314; AC: UL guide no. JFHR2 (35-800A) |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Brass |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Package Quantity | 1 |
