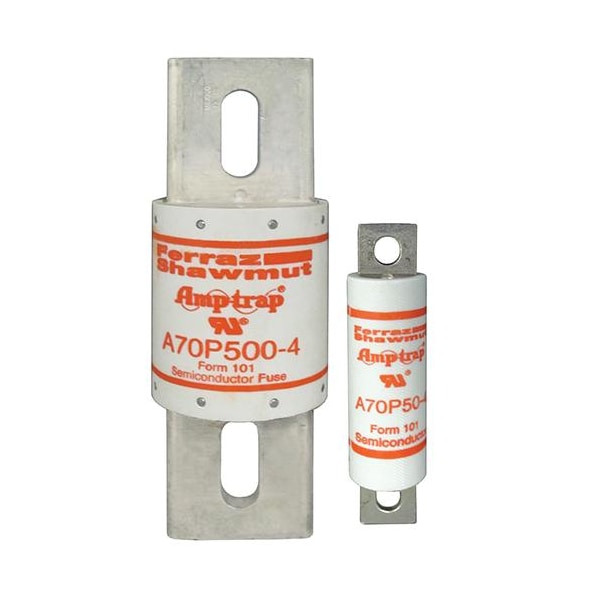

Semiconductor Fuse, A70P Series, 30A, Fast-Acting, 700V AC, Ferrule
| Item | Semiconductor Fuse |
|---|---|
| Series | A70P |
| Amps | 30A |
| Speed | Fast-Acting |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | 650V DC |
| Body Style | Ferrule |
| Interrupt Rating | 50kA |
| Body Material | GMG |
| Diameter | 0.56 in |
| Length | 2 in |
| Equivalent Brand and Series | Bussmann FWP, Littelfuse L70QS, Mersen A70P |
| Equivalent Series | FWP, A70P, L70QS |
| Fuse Speed | High Speed |
| Connection Material | Tin-Plated Copper |
| Mounting | Clip |
| APPLICATIONS | Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc. |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: guide no. JFHR2 (10-1000A); DC: tested to UL standard 198L parameters (10-800A) |
| Connection/Terminal Material | Tin-Plated Copper |
| Ampere Rating | 30 A |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Package Quantity | 1 |
