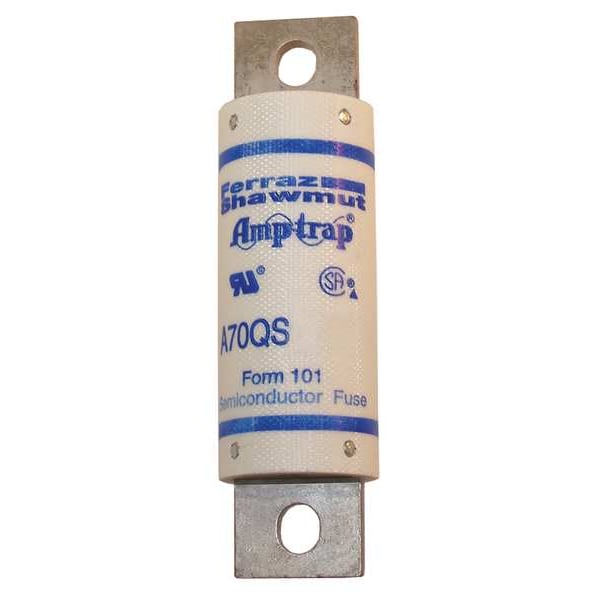

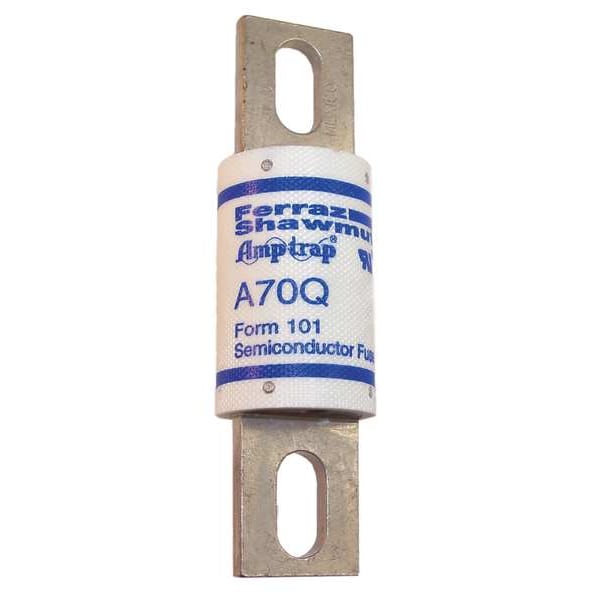

Semiconductor Fuse, A70Q Series, 100A, Fast-Acting, 700V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A70Q |
| Amps | 100A |
| Speed | Fast-Acting |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | 650V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 650V DC, 100kA at 700V AC |
| Body Material | GMG |
| Diameter | 1.22 in |
| Length | 4.37 in |
| Equivalent Brand and Series | Bussmann FWP, Mersen A70Q |
| Equivalent Series | FWP, A70Q |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Mounting | Bolted |
| Connection Material | Brass |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314 |
| AC Max I.R./Breaking Capacity: I1 | 64 kA |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: guide no. JFHR2; DC: tested to UL standard 198L parameters (35-600A) |
| Fuse Speed | Fast Acting |
| Connection/Terminal Material | Brass |
| Short Description | Semiconductor Fuse Amp-Trap® 700V 100A aR High Speed A70Q |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 1 |
