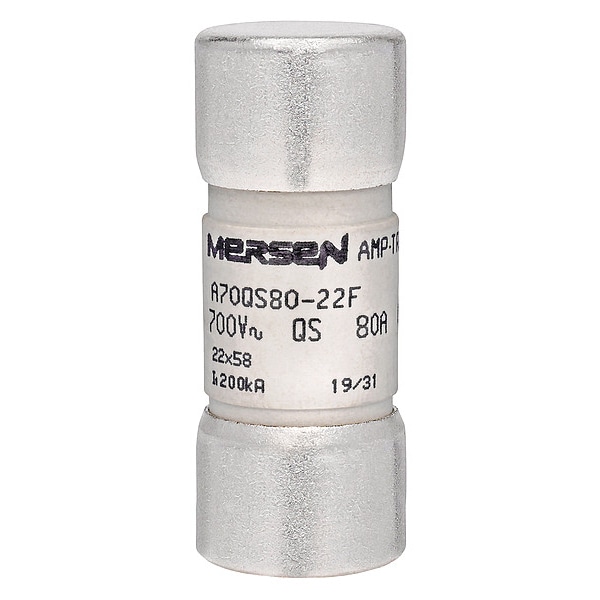

Semiconductor Fuse, A70QS-22F Series, 80A, Fast-Acting, 690V AC, Cylindrical
| Item | Semiconductor Fuse |
|---|---|
| Series | A70QS-22F |
| Amps | 80A |
| Speed | Fast-Acting |
| AC Voltage Rating | 690V AC |
| DC Voltage Rating | 700V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 700V DC, 200kA at 690V AC |
| Body Material | Ceramic |
| Diameter | 55/64 in |
| Length | 2-1/4 in |
| Equivalent Brand and Series | A70QS, Bussmann FWP, Littelfuse L70QS, Mersen A70P |
| Equivalent Series | FWP, A70QS, A70P, L70QS |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Standards | UL Recognized Component File E76491, CSA Certified, CSA Certified |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Mounting | Clip |
| Package Quantity | 1 |
