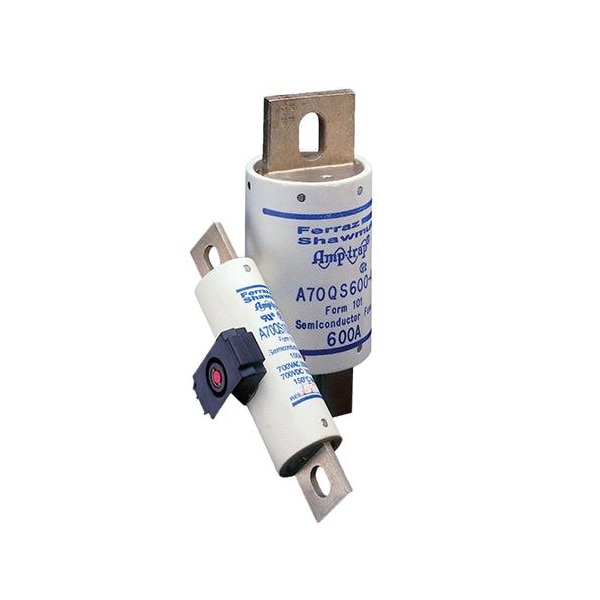

Semiconductor Fuse, A70QS Series, 175A, Fast-Acting, 690V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | A70QS |
| Amps | 175A |
| Speed | Fast-Acting |
| AC Voltage Rating | 690V AC |
| DC Voltage Rating | 700V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA |
| Body Material | GMG |
| Diameter | 1.22 in |
| Length | 5.09 in |
| Equivalent Brand and Series | A70QS, Bussmann FWP, Littelfuse L70QS, Mersen A70P |
| Equivalent Series | FWP, A70QS, A70P, L70QS |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Speed | High Speed |
| Connection Material | Brass |
| Mounting | Bolted |
| Connection/Terminal Material | Brass |
| Ampere Rating | 175 A |
| APPROVALS & STANDARDS | UL recognized component, AC/DC UL file E60314; AC: guide no. JFHR2; DC: tested to UL standard 198L parameters (35-800A); CSA certified File LR 12636 |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| APPLICATIONS | Protection of 700V or less motor drives, UPS, inverters, etc. |
| Package Quantity | 1 |
