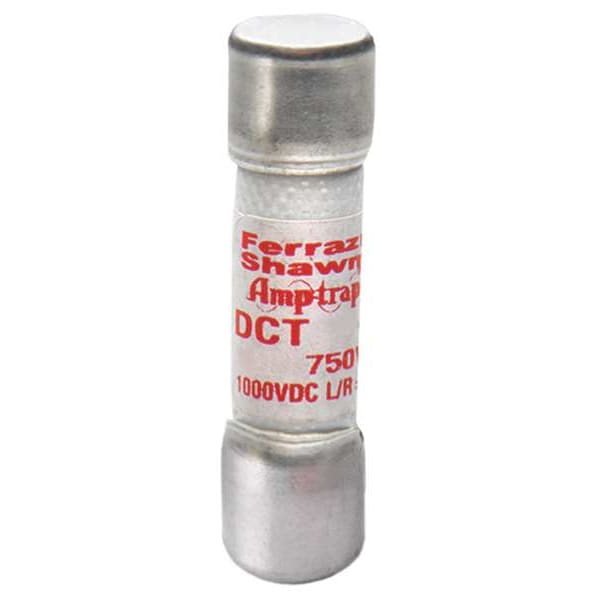

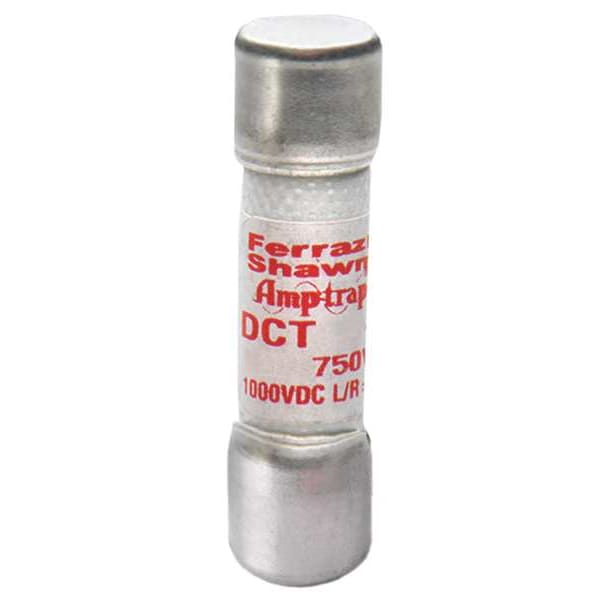

Semiconductor Fuse, DCT Series, 30A, Fast-Acting, 570V AC, Cylindrical
| Item | Semiconductor Fuse |
|---|---|
| Series | DCT |
| Amps | 30A |
| Speed | Fast-Acting |
| AC Voltage Rating | 570V AC |
| DC Voltage Rating | 1,000V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 750V AC, 50kA at 1000V DC |
| Body Material | GMG |
| Diameter | 0.406 in |
| Length | 1-1/2 in |
| Equivalent Brand and Series | Bussmann PV-F, Littelfuse SPF, Mersen DCT |
| Equivalent Series | PV-F, SPF, DCT |
| Fits Fuse Block Style | Non-Rejection |
| Rejection / Nonrejection | Nonrejection |
| Length (Straight Wireway) | 1-1/2 in |
| Standards | CE, UL Recognized, Guide JFHR2, File E60314, CSA Certified |
| Connection Material | Tin-Plated Copper |
| Element | Single |
| Weight | 0.012 lb |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| APPROVALS & STANDARDS | UL Recognized component File E60314 |
| Frequency | 50/60 Hz |
| Fuse Speed | Fast Acting |
| Short Description | Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 30A Ferrule |
| Package Quantity | 1 |
