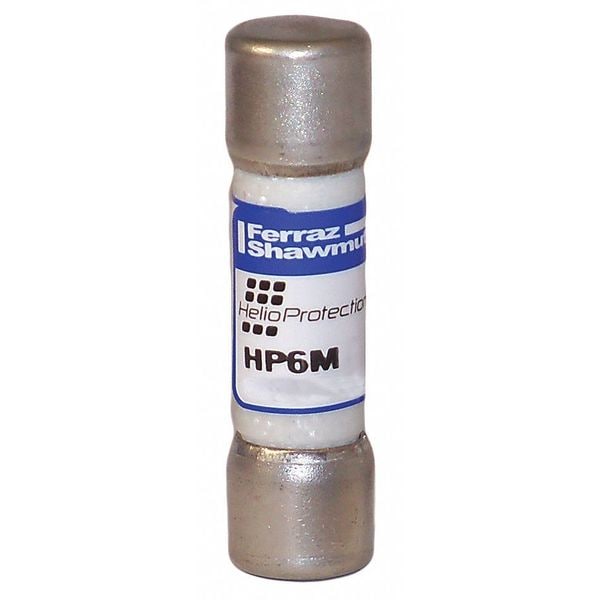

Solar Fuse, HP6M Series, 20A, Fast-Acting, Not Rated, Cylindrical
| Item | Solar Fuse |
|---|---|
| Series | HP6M |
| Amps | 20A |
| Speed | Fast-Acting |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 600V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 600V DC |
| Body Material | GMG |
| Diameter | 1-1/2 in |
| Length | 0.41 in |
| Equivalent Brand and Series | Bussmann KLM, Littelfuse KLKD, Mersen HP6M |
| Equivalent Series | HP6M, KLKD, KLM |
| Fits Fuse Block Style | Non-Rejection |
| Rejection / Nonrejection | Nonrejection |
| Ampere Rating | 20 A |
| Mounting | Clip |
| Class | gPV |
| Element | Single |
| Connection Material | Tin-Plated Copper |
| Standards | CE, CSA Component Certified C22.2, IEC 60269-6 Approved, UL Listed to Standard UL2579 File E333668 |
| APPROVALS & STANDARDS | UL Listed to Standard UL2579 File E333668; CSA Component Certified C22.2; IEC 60269-6 Approved |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| APPLICATIONS | All photovoltaic applications; PV string/array level protection; Combiner box applications; In-line PV module protection; Inverters; Battery charge controllers |
| Connection/Terminal Material | Tin-Plated Copper |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 1 |
