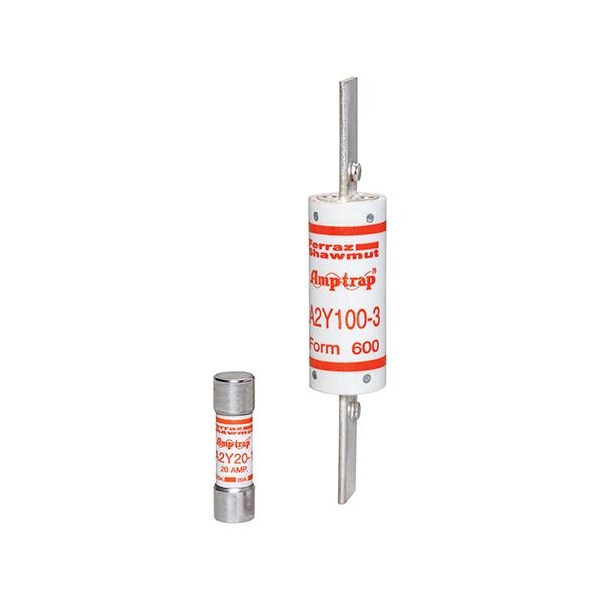

Special Fuse, A2Y Series, 20A, 250V AC, Ferrule
| Item | Special Fuse |
|---|---|
| Series | A2Y |
| Amps | 20A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 500V DC |
| Body Style | Ferrule |
| Interrupt Rating | 200kA |
| Body Material | GMG |
| Diameter | 0.56 in |
| Length | 2 in |
| Fuse Amps | 20 A |
| Fuse Voltage Rating | 250 V |
| Storage Temp. Range | -25 to 80 °C |
| Operating Temp. Range | 80 °C |
| Connection Material | Tin-Plated Copper |
| Mounting | Clip |
| Connection Type | Ferrule |
| APPROVALS & STANDARDS | UL Recognized Component File E60314; DC Tested to UL248-1 (1-600A) |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Rated voltage AC UL | 250 V |
| Frequency | 50/60 Hz |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Ampere Rating | 20 A |
| Body/Insulating Material | GMG |
| L/R (ms) | 10 |
| Rated voltage DC UL | 500 V |
| Package Quantity | 1 |
