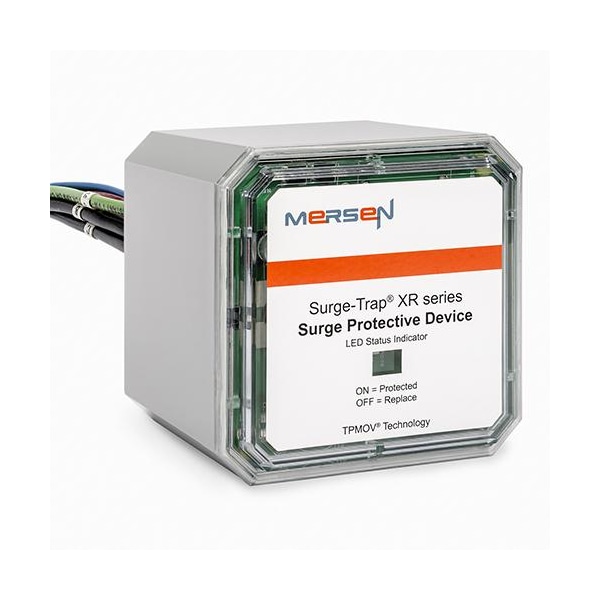

Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-N), 1000V (L-L) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-N, L-L |
| Max. Surge Current per Mode | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 150/300V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Polycarbonate |
| Length | 3-1/2 in |
| Depth | 4.14 in |
| Width | 3-1/4 in |
| Wire Gauge | 10 AWG |
| Includes | Tri-Mount Installation Kit |
| Standards | UL 1449 3rd Edition |
| Modular / Nonmodular | Modular |
| Mounting | Din Rail, Bracket, Panel |
| Operating Temp Range (Min/Max) | -40 to +85 °C |
| Applications | AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers |
| UL Certification | E210793 VZCA.E210793 |
| SCCR | 100 kA, 200 kA |
| MCOV L-N | 150 V |
| Indication System | Yes |
| Installation Mounting | Panel Mount |
| UL SPD Type | Type 1 |
| Indication System Type | LED |
| Item Description (ERP) | XR T1 50kA 240/120V SP |
| Max Discharge Current : Imax (8/20) | 50 kA per phase |
| Frequency | 50/60 Hz |
| MCOV L-G | 300 V |
| System Configuration | Split Phase |
| APPROVALS & STANDARDS | ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793; CSA C22.2, Type 1 SPD; ANSI/IEEE C62.41.1, C62.41.2, C62.45; UL96A Lightning Protection |
| MCOV L-L | 300 V |
| Short Description | SPD - Type 1 ST-XR Series 240/120V L-L VPR 1000V L-L MCOV 300V 50 kA LED Ind |
| Package Quantity | 1 |
