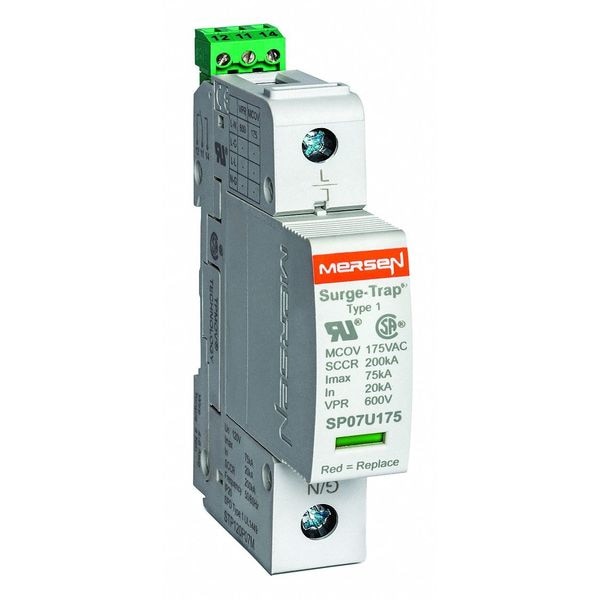

Surge Protection Device, 1 Phase, 120V AC, 1 Poles, 2 Wires
| CAD Available | Yes |
|---|---|
| Item | Surge Protection Device |
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 120 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 600V (L-N) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-N |
| Max. Surge Current Per Mode | 75 kA |
| Max. Surge Current per Phase | 75 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 175V AC |
| Enclosure NEMA Rating | NEMA 1 |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |

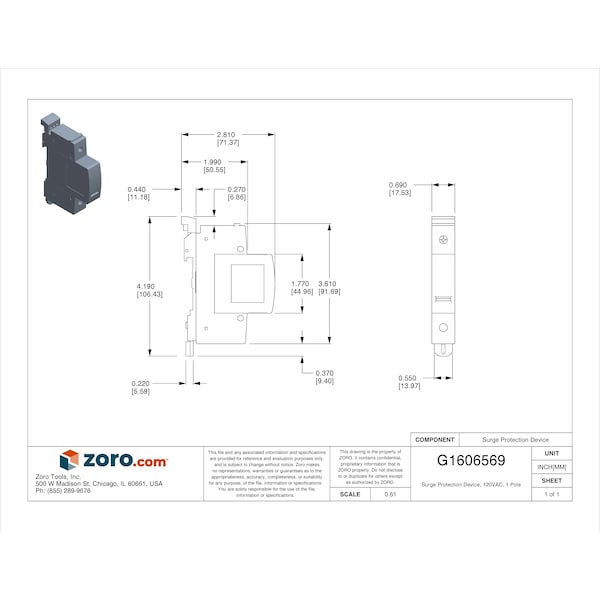

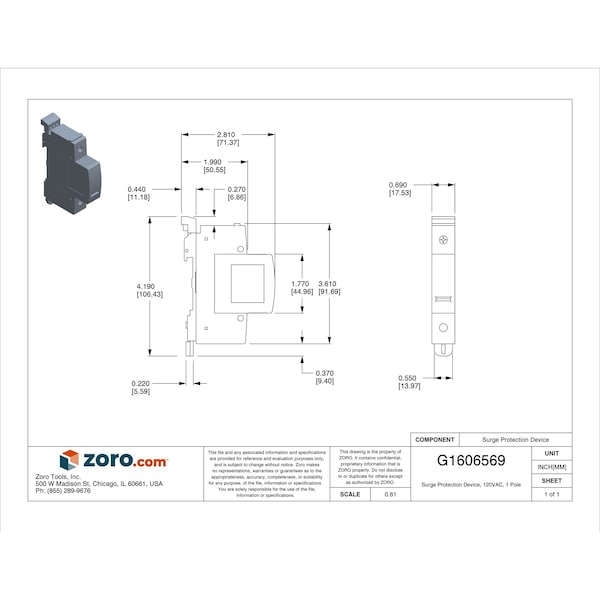

| Length | 4.19 in |
| Depth | 2.81 in |
| Width | 0.69 in |
| Wire Gauge | 14 to 4 AWG |
| Includes | Form C Dry Contact |
| Standards | ANSI/UL 1449 4th Edition, ANSI/IEEE C62.41.1, C62.41.2, C62.45, RoHS Compliant, Type 1 |
| Lightning Impulse Current | 75 kA |
| Modular / Nonmodular | Modular |
| Color | Gray |
| System Connection | Parallel |
| Max. Operating Temp. | 185 deg F |
| Min. Operating Temp. | -40 deg F |
| UL SPD Type | Type 1 |
| Amps | 75,000 |
| Status Indicator | Audible Alarm |
| Includes Surge Counter | No |
| Flammability Rating | UL94 V0 |
| Item Description (ERP) | STP T1 75kA 120V 1P ALM |
| Replacement Plug L1 | SP07U175 |
| Mcov L-N | 175 V |
| Response Time | <25 ns |
| MOV Response Time | <25 ns |
| Max Discharge Current : Imax (8/20) | 75 kA |
| Protection Modes | L-N |
| Frequency | 50/60 Hz |
| APPROVALS & STANDARDS | ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2, |
| Torque Rating | 35.4 lb-in |
| Connection Terminal Type | Box |
| Housing Material | PET |
| Min Storage Temp | -40 °C |
| Wiring Range | #4 to #14 AWG |
| Connection/Terminal Type | Box |
| Short Description | SPD - Plugable STP 75 Series 120V L-N VPR 600V L-N MCOV 175V 75 kA 1-pole MICRO |
| Indication System Type | Microswitch |
| Indication System | Yes |
| Ac Or Dc | AC |
| Max Storage Temp | 85 °C |
| Max Operating Temp | 85 °C |
| Wire Connections | Box |
| Wire Type | Solid CU, Stranded |
| Installation Mounting | DIN Rail |
| System Configuration | Single Phase |
| Max Discharge Current Imax 8 20 | 75 kA |
| Min Operating Temp | -40 °C |
| Package Quantity | 1 |
